EFNOTE 5X

The Complete Experience

Electronic Drums EFNOTE 5X

Snare drum stand and cymbal stands are optional.

Hi-hat stand and kick pedal are not included.

EFNOTE 5X : The Complete Experience

Completion of Compact Style

  • Specially full-expanded based on EFNOTE 5
  • 5-piece shell and 5-piece cymbal set
  • Dignified black oak-ish finish
  • Player centric design

Playability and Musicality

  • Redefines compact drums by the completed playability
  • Pre-expanded for adapting to a variety of musical styles
  • 360° flat sensing with multi-sensor technology

One more rack tom can be expanded from this picture.

Specializes in Acoustic

  • Beautiful acoustic drum sounds
  • 99% capacity is used for acoustic drum sound
  • Includes rich ambient that reinforces the drum sound

Drums & Cymbals

7-Sensor Snare Drum

  • 12 x 5", 8 lugs, birch wood shell, 2ply mesh drum head
  • Multi-sensor for hotspotless and high-resolution sounding
  • High head tension tuning available

Independent Side-Rim

  • Easy, intuitive and reliable
  • No switch operation required
  • Elegant arc design

16" Kick, More Than the Size

  • 16 x 12", 8 lugs, birch wood shell, 2ply mesh drum head
  • Comfortable feeling and stability over its size
  • Stable multi-sensing for single/double beater(s)

Modern Two Floor Toms Style

  • 12 x 12", 8 lugs / 13 x 13", 8 lugs
  • Birch wood shells, 2ply mesh drum heads
  • Multi-sensor for hotspotless and high-resolution sounding
  • Low head tension tuning available

Finest Hi-Hat Cymbals

  • 14" top/bottom cymbals
  • World's first multi-optical sensing to capture the motions in 3D
  • Tru-Motion™ technology for expressiveness leap
  • 360° free-swinging top/bottom cymbal design

Full Size Cymbals

  • 2x 16" crash cymbal, 3-zone (Bow/Edge/Cup)
  • 1x 18" ride cymbal, 3-zone (Bow/Edge/Cup)
  • Multi-sensored 360° play/choke area
  • 360° free-swinging design
  • Responsive thin edge

EFNOTE 5X does not support the Crash 2 cup when the Crash 3 is used.

Splash!

  • 8", 2-zone (Bow/Edge)
  • Ultra thin and light weight design
  • Multi-sensored 360° play/choke area
  • 360° free-swinging design
  • Responsive thin edge

Beautiful Cymbal Surface

  • Elegant warm-gray surface with fine engravings
  • Clean silicone rubber surface that is resistant to drumstick marks

Sound Module

Ultra-Compact Sound Module

  • Ultra-small form factor with uncompromised features
  • Metal chassis and aluminum finish
  • High quality DAC and audio circuit
  • High power headphone amplifier
  • Touch screen intuitive user interface

ELISE™ Sensing Processor

  • Capturing drummer's intentions from each stroke
  • Low latency, wide dynamic-range, consistent and stable sensing
  • Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

Full-Scale Acoustic Sound

  • Full stereo acoustic drum/cymbal samples recorded by EFNOTE
  • Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
  • Raw sound without resynthesis

For Training

  • Multi-function metronome with beat LED indicator
  • Built-in metronome speaker for daily training without headphones
  • On-board drum recording function (15 tracks)
  • Stroke Analyzer
  • Rhythm Box feature provides over 90 basic drum beats

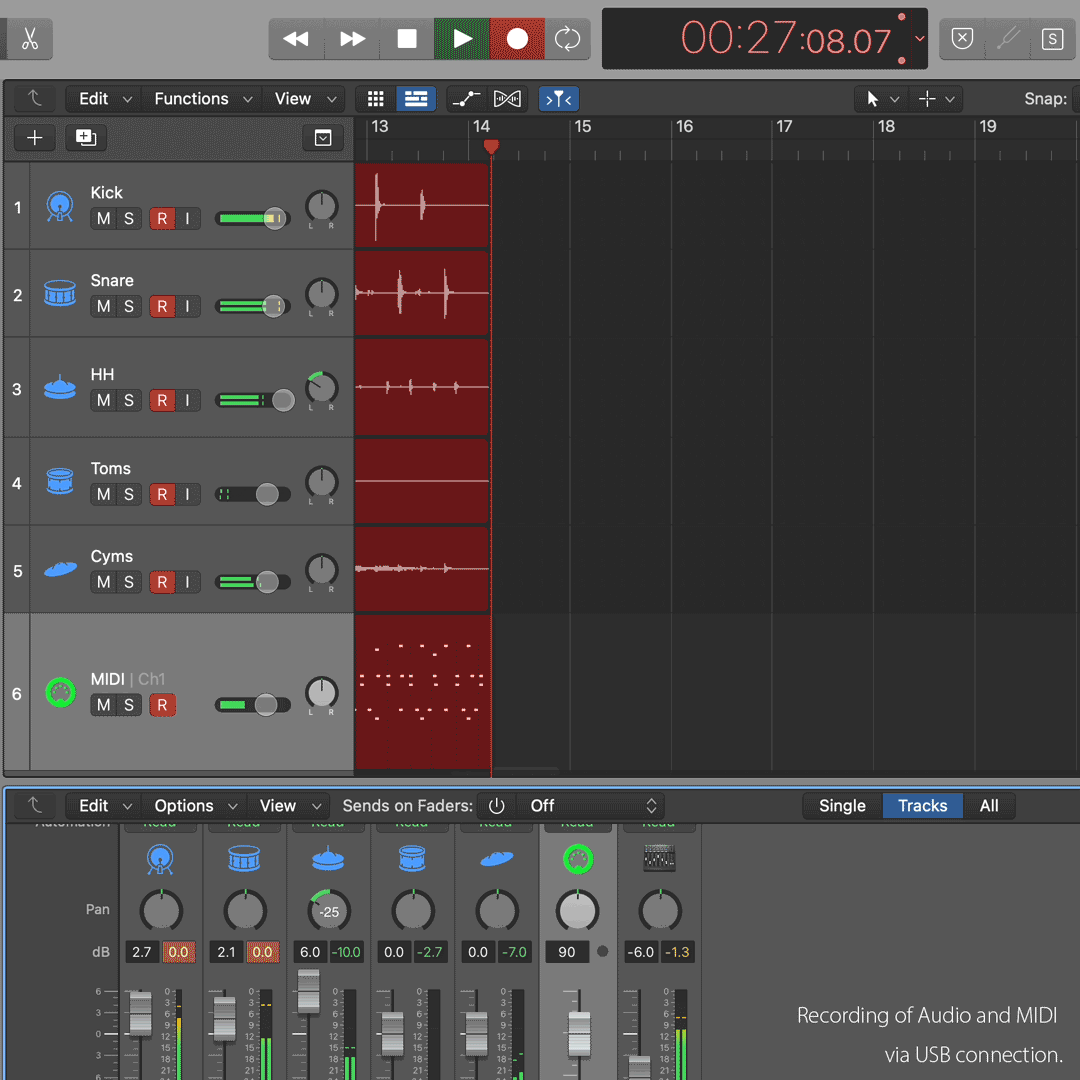

For Recording

  • USB 8-ch individual audio outputs with Mac / Windows (ASIO)
  • USB 2-ch audio inputs for playback
  • Analog 4-ch audio outputs
  • USB MIDI in/out with individual MIDI channels
  • MIDI output (5-pin DIN)

For Small Gigs

  • Setlist feature enables you to configure kit order with tempo for each song
  • Kick and Snare can be output individually with analog 4-ch outputs
  • Click and Audio-In can be assigned only for headphones
  • High-power headphones output
  • MIDI output (5-pin DIN)

Stroke Analyzer

  • "Stroke Scope" displays your strike points on time-line
  • "Accuracy Score" estimates your strike accuracy

Sound Edit

  • Tuning, Muffling, 2-band EQs for each pad
  • Pad layer function can overlay two sounds
  • User Inst Library enables you to store 128 customized instruments
  • On-board reverb
  • Dedicated level control screen

Flexible Audio Routing

  • 10-ch output buses
  • Flexible output routing for each pad
  • Output assignable click
  • Output: 4-ch analog / 8-ch USB
  • Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

  • Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
  • Bluetooth MIDI
  • EFNOTE Tools App for control remotely

Various Optional Components

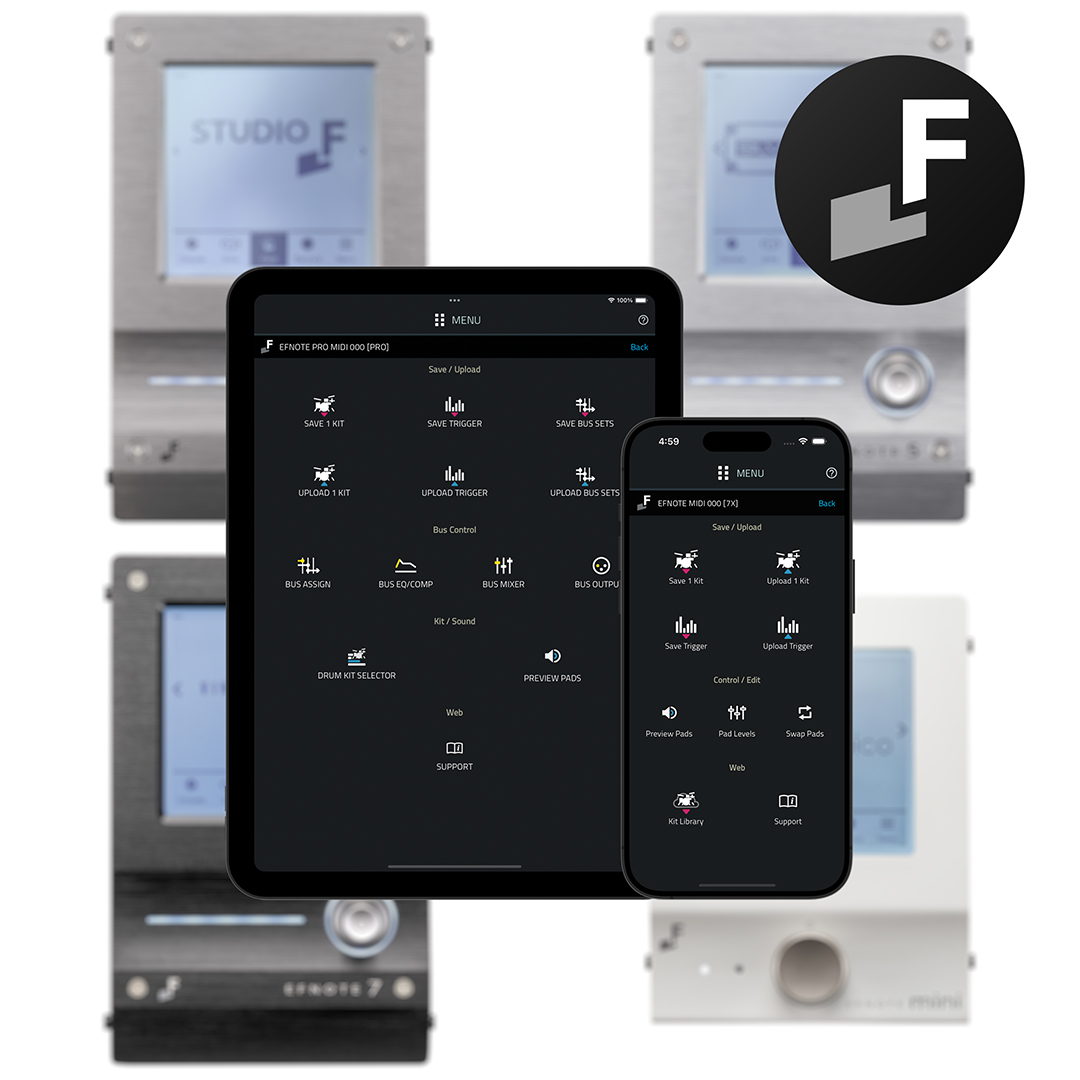

EFNOTE Tools App

EFNOTE Tools
- Carry Data with You

You can backup, restore, and share drum kit data and trigger settings with your smartphone.

EFNOTE Tools
- Get New Drum Kits

Visit the official Kit Library to get the new drum kit data.

There you will surely find ideas that inspire your creativity.

EFNOTE Tools
- Adjust Remotely

For small gigs, drummers often cannot rely on FOH engineers.

Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.

EFNOTE Tools
- Swap Sounds

The Swap feature makes it easy to swap each sound of toms or cymbals.

It helps you changing the set up and editing kits.

Gallery

Product images are for illustration purposes only, actual products may vary.

In some countries, the specifications and configuration shown may vary.

Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.

Other models or customized setups are shown for some images.

Some technologies and designs are patented or under patent pending.

Company names, brand names, etc. appearing in photos are registered trademarks or trademarks of the respective companies.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc..

EFNOTE 5 / EFNOTE 5X Videos

EFNOTE 5 / EFNOTE 5X Preset Drum Kit Sound

  • The raw sound of EFNOTE 5/5X preset kits are recorded via USB (only the volume is adjusted)
  • Listening with headphones is recommended
  • Data format: .WAV file (48 kHz/24 bit)
SILVER FONIC
Neo Classic
FunQ
SNARE OFF
Speed Star
First Note
Great Strokes
ENCORE
Z & B
Recording
Coated Medium
Maple Shells
Birch Shells
SPLASH
ROCKIN ROAD TRIP
THOUSANDS of AUDIENCE
STUDIO F

Reproducing all or any part of the contents is prohibited.

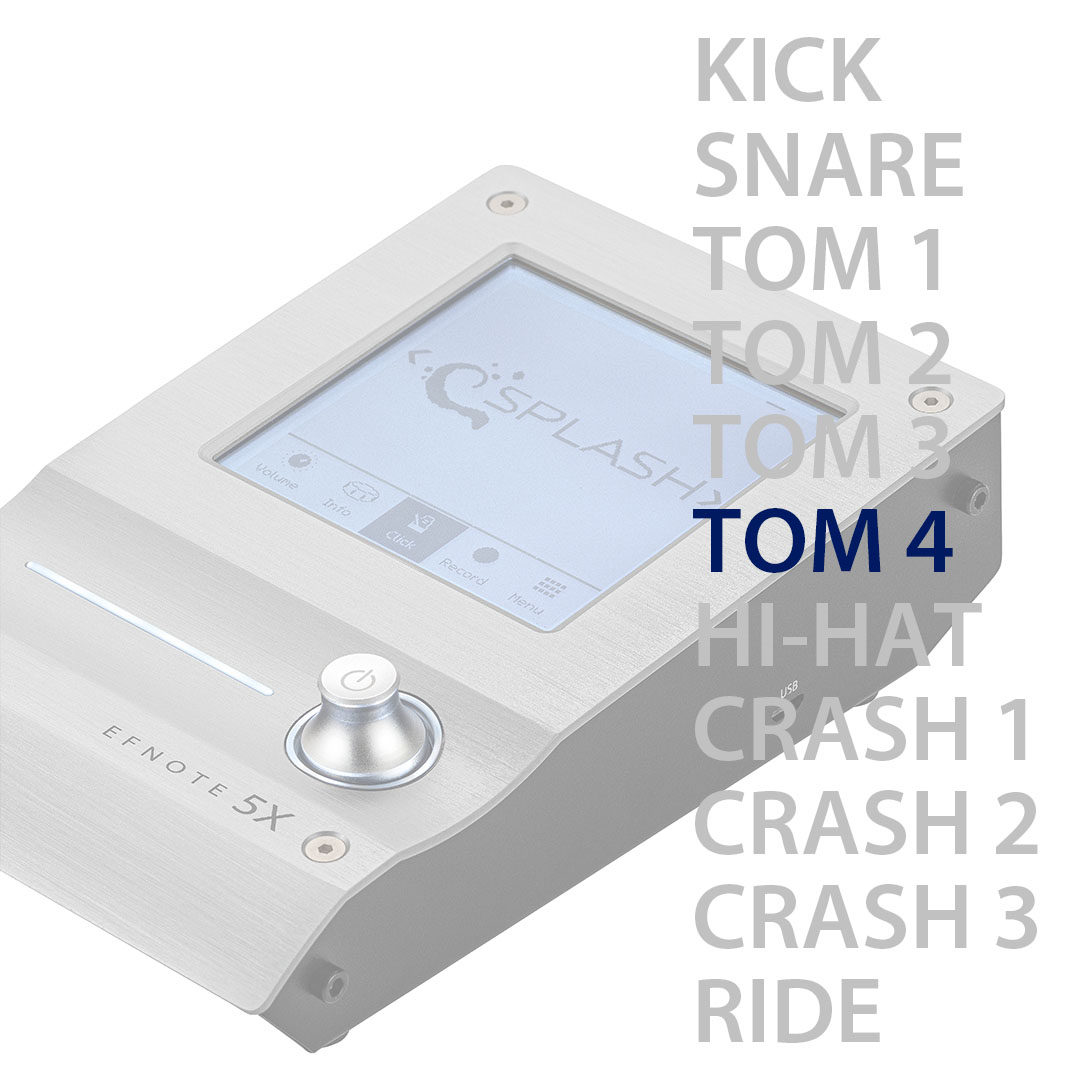

Available Trigger Input for Expansion

Customize Examples

Items required:

  • 1x Rack Tom 11": EFD-T1180-WS
  • 2x Tom Mount: EFD-TM5
  • Use the TOM 4 cable.

    All Crash Cups are not supported with this setup.

Items required:

  • 1x Ride Cymbal 20": EFD-C20
  • 1x Cymbal Stand: EFD-CS5
  • Replace the ride cymbal with the 20” cymbal, and use the 18” cymbal as the 4th crash cymbal with the TOM 4 cable. (In this case, you need to change the instrument assigns for the TOM 4 input.)

    All Crash Cups are not supported with this setup.

Optional Hardware Set

HW Set for EFNOTE 5X

EFD5X-BOX4

Unless sold separately, Hardware Set is usually included in the EFNOTE 5X set.
Please contact your dealer for details.

Optional Shells

Rack Tom 11"

EFD-T1180-BO

  • Size: 11 x 8"
  • Shell: Birch 6-ply
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Colored hoop rubber
  • Rod Mount (φ9.5 -- φ12.0 mm)

Optional Cymbals

Ride Cymbal 20"

EFD-C20

  • Size: 20" / 51 cm
  • Color: Warm gray
  • Use: Ride cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Hammered texture surface with fine engravings

Standard Cymbal 18" Dark

EFD-C18-D

  • Size: 18" / 45 cm
  • Color: Dark gray
  • Use: Ride cymbal / Crash-Ride cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 18"

EFD-C18

  • Size: 18" / 45 cm
  • Color: Warm gray
  • Use: Ride cymbal / Crash-Ride cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 16"

EFD-C16

  • Size: 16" / 40 cm
  • Color: Warm gray
  • Use: Crash cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 14"

EFD-C14

  • Size: 14" / 35 cm
  • Color: Warm gray
  • Use: Crash cymbal / Mini-China cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 12"

EFD-C12

  • Size: 12" / 30 cm
  • Color: Warm gray
  • Use: Splash cymbal / Mini-China cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

China Cymbal 18"

EFD-C18CH

  • Size: 18" / 45 cm
  • Color: Dark gray
  • Use: China cymbal
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: STAK™, Weight simulation, Hammered texture surface with fine engravings

Effect Cymbal 17"

EFD-C17FX

  • Size: 17" / 43 cm
  • Color: Dark gray
  • Use: Crash cymbal / Effect cymbal
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: STAK™, Weight simulation, Hammered texture surface with fine engravings

Splash Cymbal 8"

EFD-C08

  • Size: 8" / 20 cm
  • Color: Warm gray
  • Use: Splash cymbal
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Optional Hardware

Cymbal Stand

EFD-CS5

  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ19.1 mm (3/4")
  • Boom length: 400 mm
  • Height adjustment range: 800 -- 1,500 mm

Tom Mount

EFD-TM5

  • Ball angle adjustment
  • Knurled carbon steel rod
  • L-rod diameter: φ10.0 mm (3/8")
  • Installable pipe diameter: φ19.1 mm (3/4") -- φ31.8 mm (5/4")

Splash Cymbal Mount

EFD-SCM5

  • 1x Z-rod short
  • 1x Z-rod long
  • Installable pipe diameter: φ19.1 mm (3/4") -- φ28.6 mm (9/8")

Product images are for illustration purposes only, actual products may vary.

In some countries, the specifications and configuration shown may vary.

Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.

Other models or customized setups are shown for some images.

Specifications

Drum / Cymbal Pads

Kick EFD-K1612
  • Size: 16 x 12"
  • Finish: Black Oak-ish
  • Zone: Head
  • Sensor: Multi
  • Head: Double-layered mesh with beater patch
  • Connector: Head (TRS Phones)
  • Features:Bass drum riser, Wood hoop
Snare EFD-S1250
  • Size: 12 x 5"
  • Finish: Black Oak-ish
  • Zone: Head / Rim / Side-Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim, Side-Rim (2x TRS Phones)
  • Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1070
  • Size: 10 x 7"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom 1 EFD-T1212
  • Size: 12 x 12"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom 2 EFD-T1313
  • Size: 13 x 13"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
  • Size: 14" (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
  • General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

    EFNOTE 5X sound module does not support hi-hat cup zone.

Crash 1 / 2 EFD-C16
  • Size: 16"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
  • In the EFNOTE 5X configuration, the Crash 2 cup is not supported when the Crash 3 is used.

Ride EFD-C18
  • Size: 18"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Splash EFD-C08
  • Size: 8"
  • Color: Warm gray
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Sound Module: EFD-5X

Trigger Interface
  • 3-Zone: Snare, Crash 1/2*, Ride
  • 2-Zone: Tom 1/2/3/4, HH, Crash 3
  • 1-Zone: Kick
  • Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.

    In the EFNOTE 5X configuration, the Crash 2 cup is not supported when the Crash 3 is used.

Audio / MIDI Interface
  • Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
  • Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
  • Audio Input: Stereo Mini-Phone (+2dBu Max)

  • USB: Micro-B Type USB 2.0 Hi-Speed
    Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
    MIDI: In/Out
  • Bluetooth Audio Input
  • Bluetooth MIDI In/Out
  • MIDI Out: 5-pin DIN
Drum Kits / Instruments
  • Preset Drum Kits: 17 (Editable)
  • User Drum Kits: 83
  • Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
  • User Inst Library: 128 (Can be stored customized instruments)
Edit Parameters
  • Level, Pan, Tuning, Muffling (for each pad)
  • 2-Band EQ (for each pad)
  • Ambience Effect (8 types)
  • Pad Layer
Dimensions
  • 106 (W) x 172 (D) x 47 (H) mm
  • 700 g

Excluding protrusions

Power
  • DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware

Tom Holder
  • 1x Tom holder arm
  • Geared L-rod tilter
  • Knurled carbon steel rod
  • L-rod diameter: φ11.5 mm (7/16")
  • Tube diameter: φ22.2 mm (7/8")
  • Height adjustment range: 700 -- 900 mm
Splash Cymbal Arm
  • 1x Z-rod short
  • 1x Z-rod long
Sound Module Arm
  • 1x Sound module arm
  • 1x Smartphone tray
Snare Drum Stand
(Optional)
EFD-SS5
  • For 12" to 14" diameter snare drums
  • Geared basket tilter
  • Double braced legs
  • Tube diameter: φ19.1 mm (3/4")
  • Height adjustment range: 500 -- 650 mm
Cymbal Stand
(Optional)
EFD-CS5
  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ19.1 mm (3/4")
  • Boom length: 400 mm
  • Height adjustment range: 800 -- 1,500 mm

Drum Kit Placement

Placement Size
  • Approx. 170 (W) x 110 (D) cm
  • Approx. 5.6 (W) x 3.6 (D) feet

Without drum throne

Package

Accessories
  • Brake-out cable: EFD-MULTI-AX
  • Brake-out cable: EFD-MULTI-B
  • 4x Trigger cable 3.0 m: EFD-TRS-LL3
  • Cable ties
  • Quickstart guide

Snare drum stand and cymbal stand are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.

Specification and design are subject to change without prior notice.

Some of technologies and designs are under patent pending.

USB Compatibility

Downloads

Before downloading the following items, please carefully read the Software License Agreement.

Software License Agreement

Manuals (PDF)

Quickstart Guide
Reference Guide
Sound List

Drivers / Firmware / Apps

Consumable Parts

See the Consumable Parts page.

Tutorials

Get Support by Your Local Distributor
