EFNOTE PRO

The Stage Drums™

Electronic Drums EFNOTE PRO

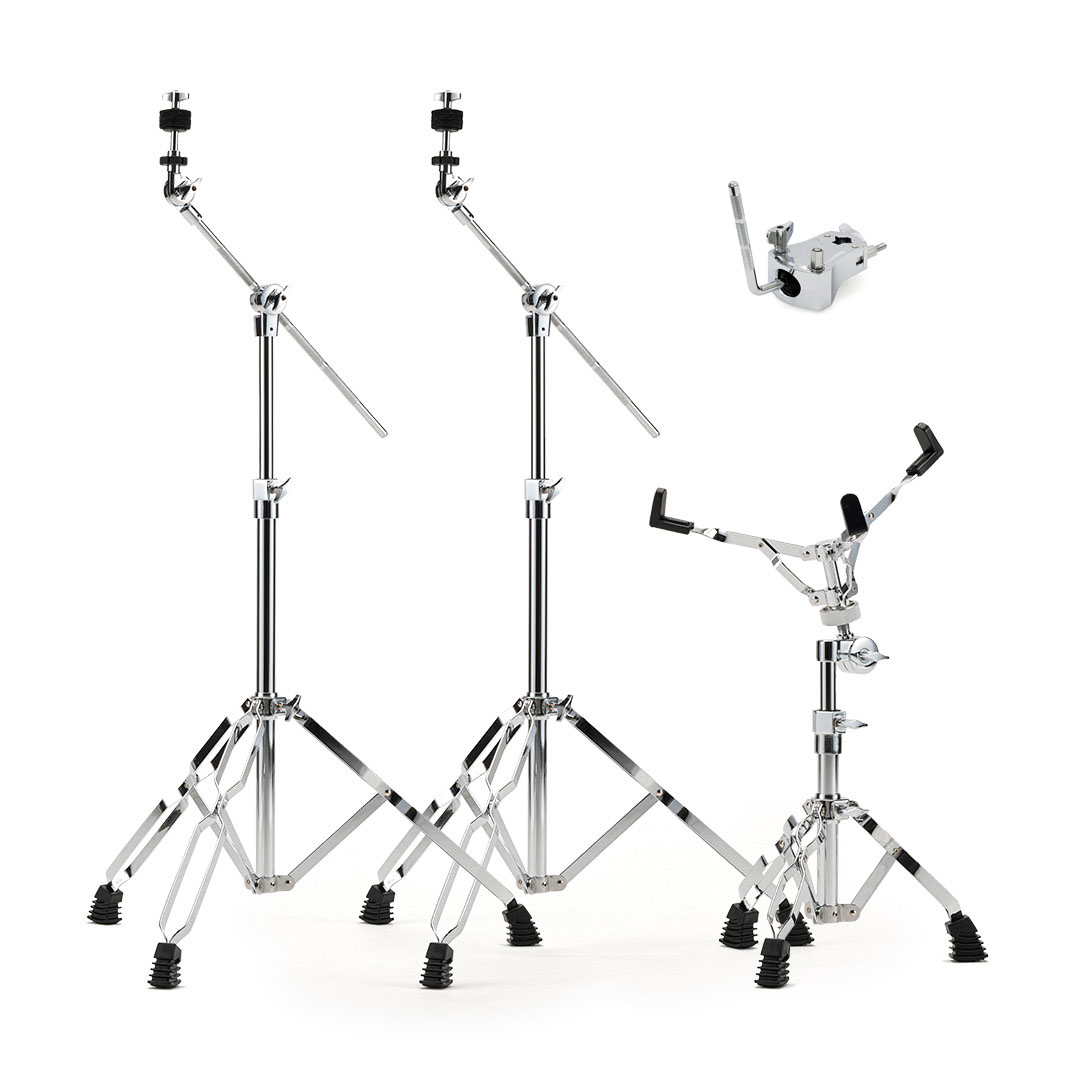

Snare drum stand, tom stand and cymbal stands are optional.

Hi-hat stand and kick pedal are not included.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

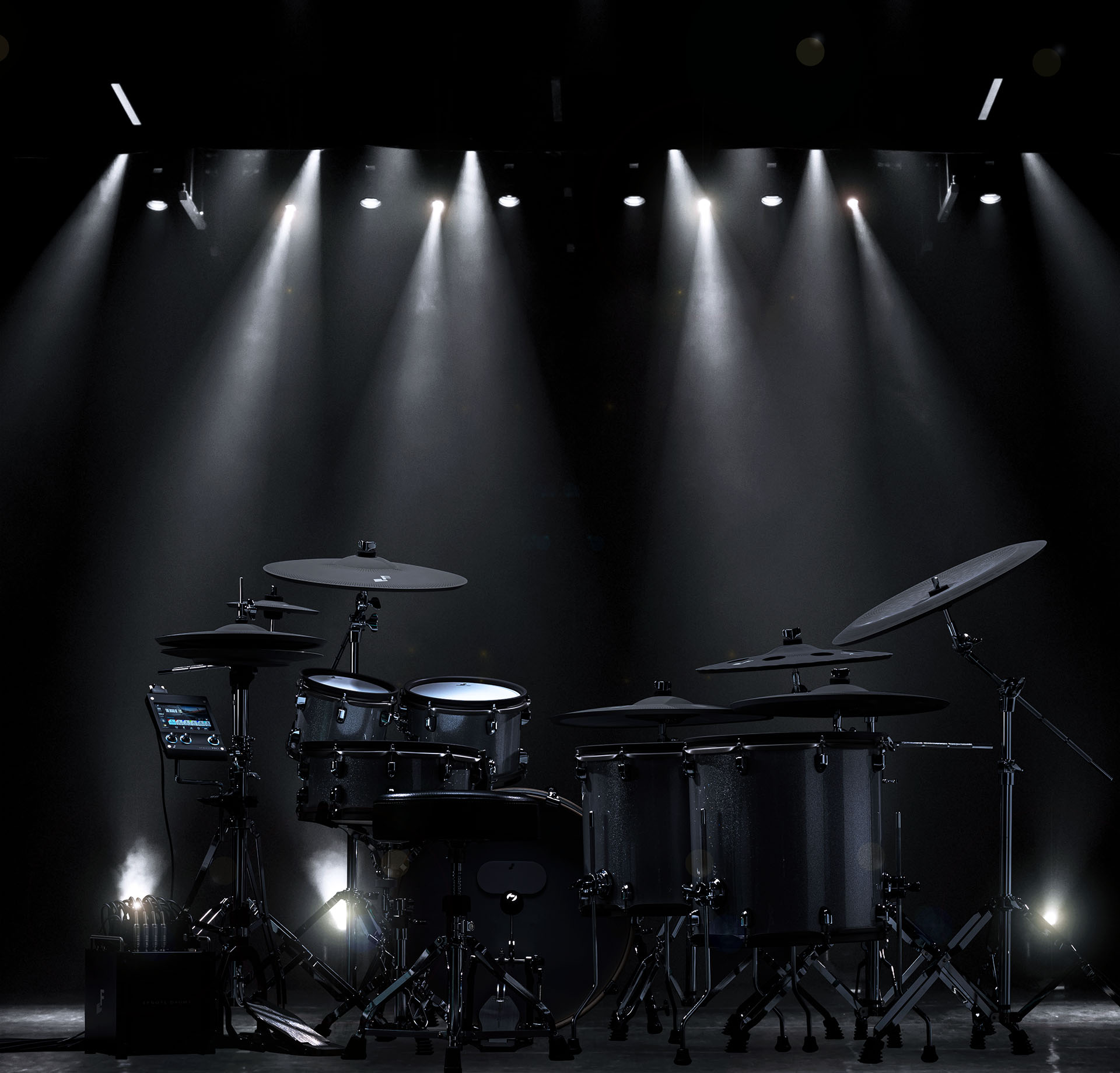

Enhance the Stage

EFNOTE PRO is designed to digitize your drum riser, then elevates your stage.

By simply connecting up to 12 balanced XLR outputs to your stage snake or sound-board, you will be sending and receiving the highest quality drum sounds on the market with total consistency and perfect isolation.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

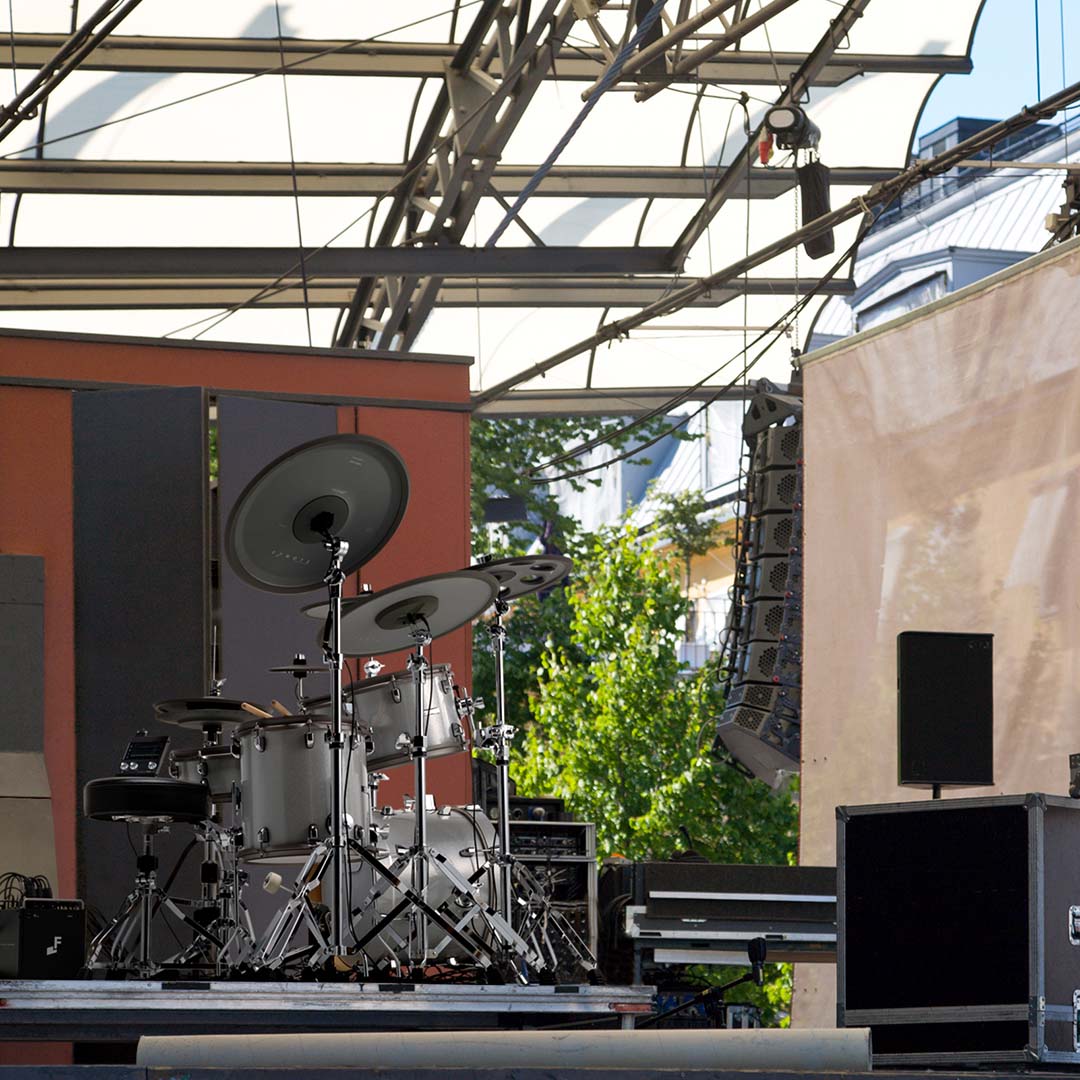

No More Acrylic Panel

There is no need to isolate your drummer from the choir, acoustic instruments, your audience or congregation. Your drummer is now free to connect and engage with everyone!

EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity, balance and control.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

Stage-Box Reliability

EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.

Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.

Each channel is equipped with HPF, 2-band EQ, individual compressors for Bus 1-6, and ground lift switches.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO
New

V2.0, Create Your Signature Sound

Introducing the EFNOTE PRO V2.0 firmware update, which brings powerful new features to help you define your unique drum sound.

The User Tone feature and the EFNOTE Desktop Tools app allow you to easily create your custom drum sounds, while the improved Instrument Expansion gives you easy access to a growing library of professional add-on instruments.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

Remote Control

EFNOTE Tools App provides faster and more reliable rehearsals.

The FOH engineer can change the settings of the output sent to the console without affecting the drummer's monitor sound.

The drummer can also adjust the front sound while playing back the recorded data.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

Flexibility for All Music

EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment.

All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.

In addition, with 12-ch of multitrack USB Audio and 16-ch USB MIDI running simultaneously, a drummer, producer or mixer have quick access to editing, in order to meet artist’s budget requirements.

Sound

Contains Legendary Drum Sets

  • The delicate resonance of aged shells are newly captured, recorded by EFNOTE
  • Raw and organic, NOT synthetic and electronic
  • Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

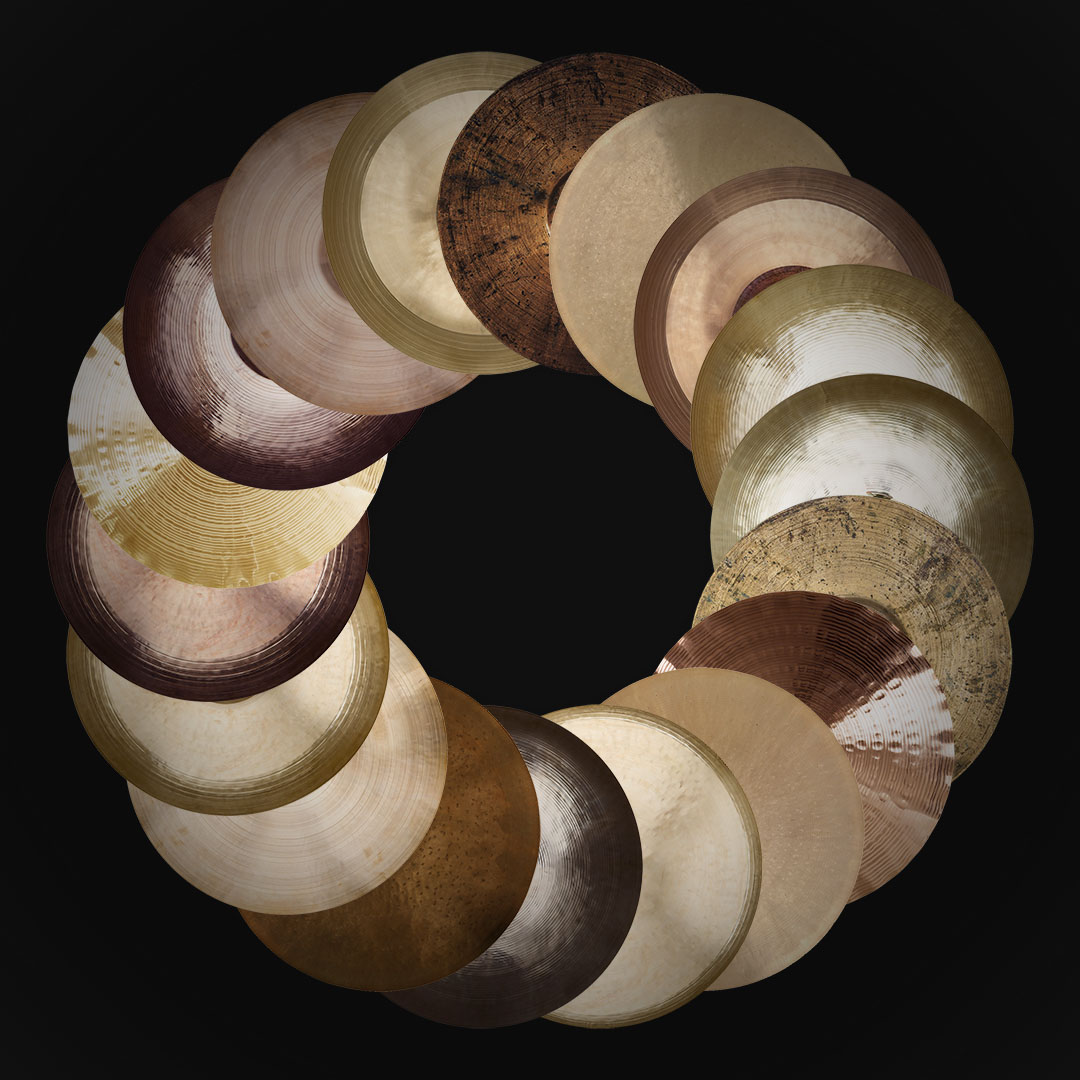

Diverse Cymbal Collection

  • Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
  • Contains modern trash/effect/stacked cymbal sounds
V2.0

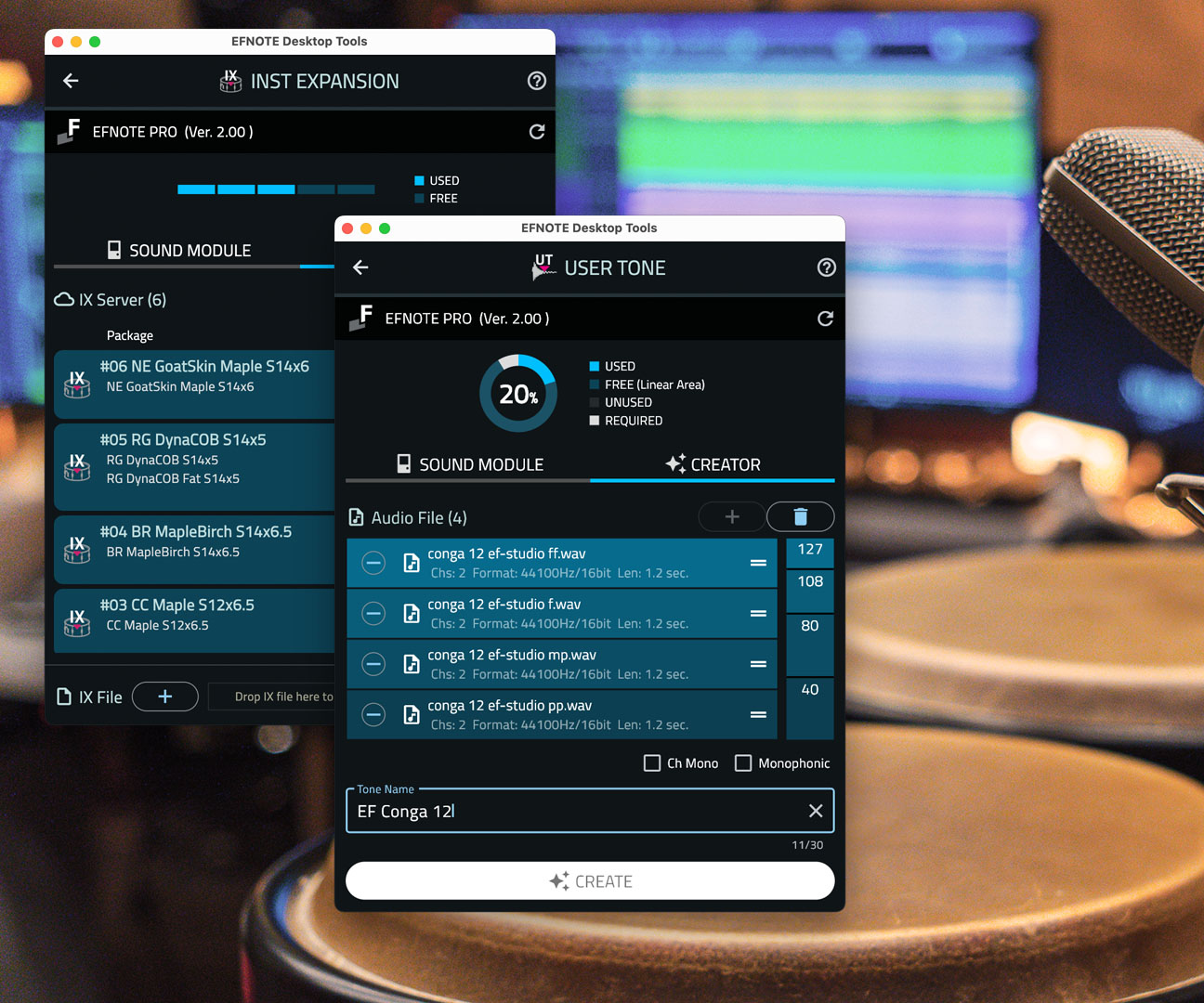

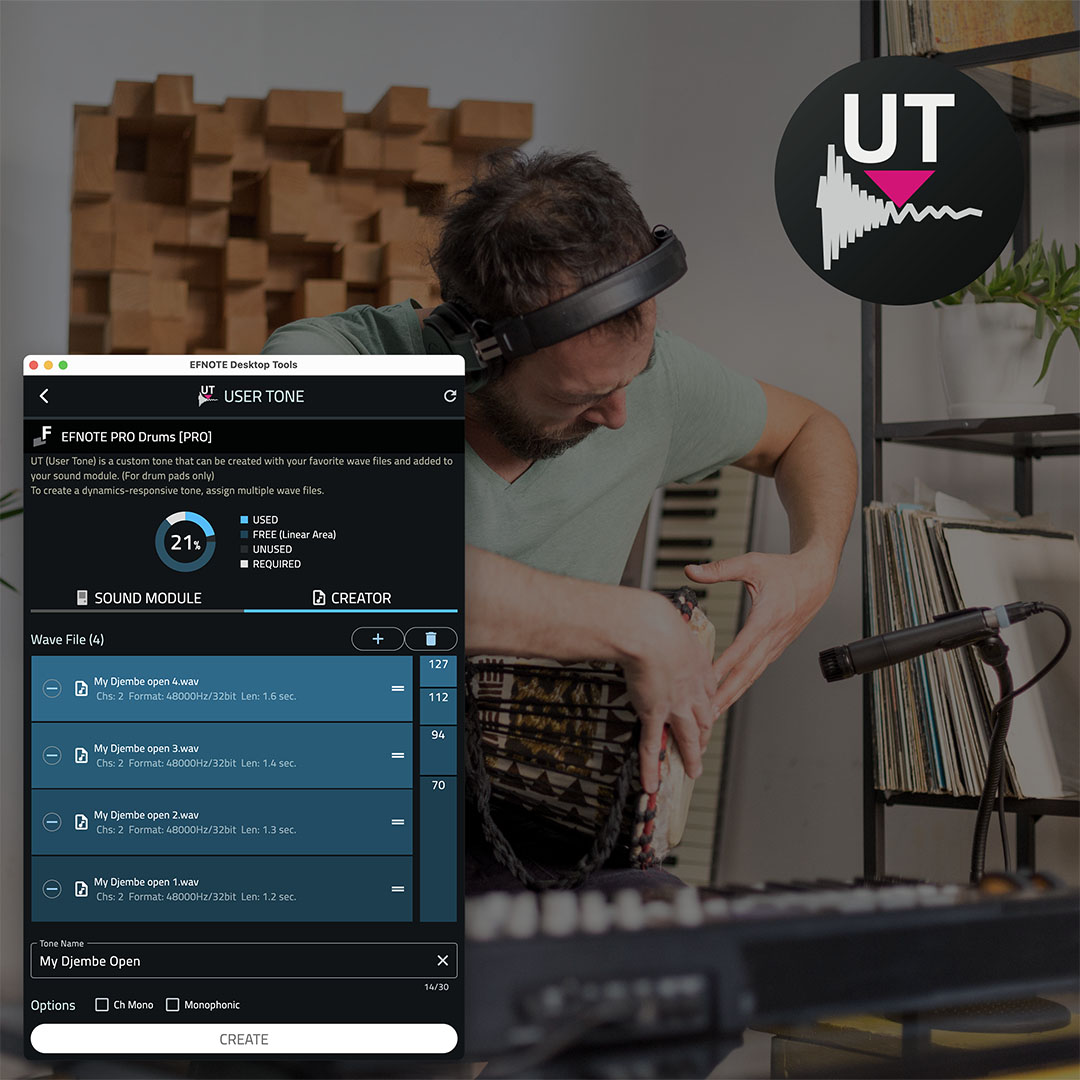

User Tone (UT)

  • UT is a custom drum tone that can be created with your audio files and added to your sound module.
  • Supports a dynamics-sensitive tone with multiple audio files.
  • All UTs can also be used as Overlay Tones to overlay on any preset drum sounds.
  • Easy to create UTs using the new EFNOTE Desktop Tools app.
  • User Tones can be used for drum pads (Kick/Snare/Toms) only.

    EFNOTE Desktop Tools runs on Mac/PC.

V2.0

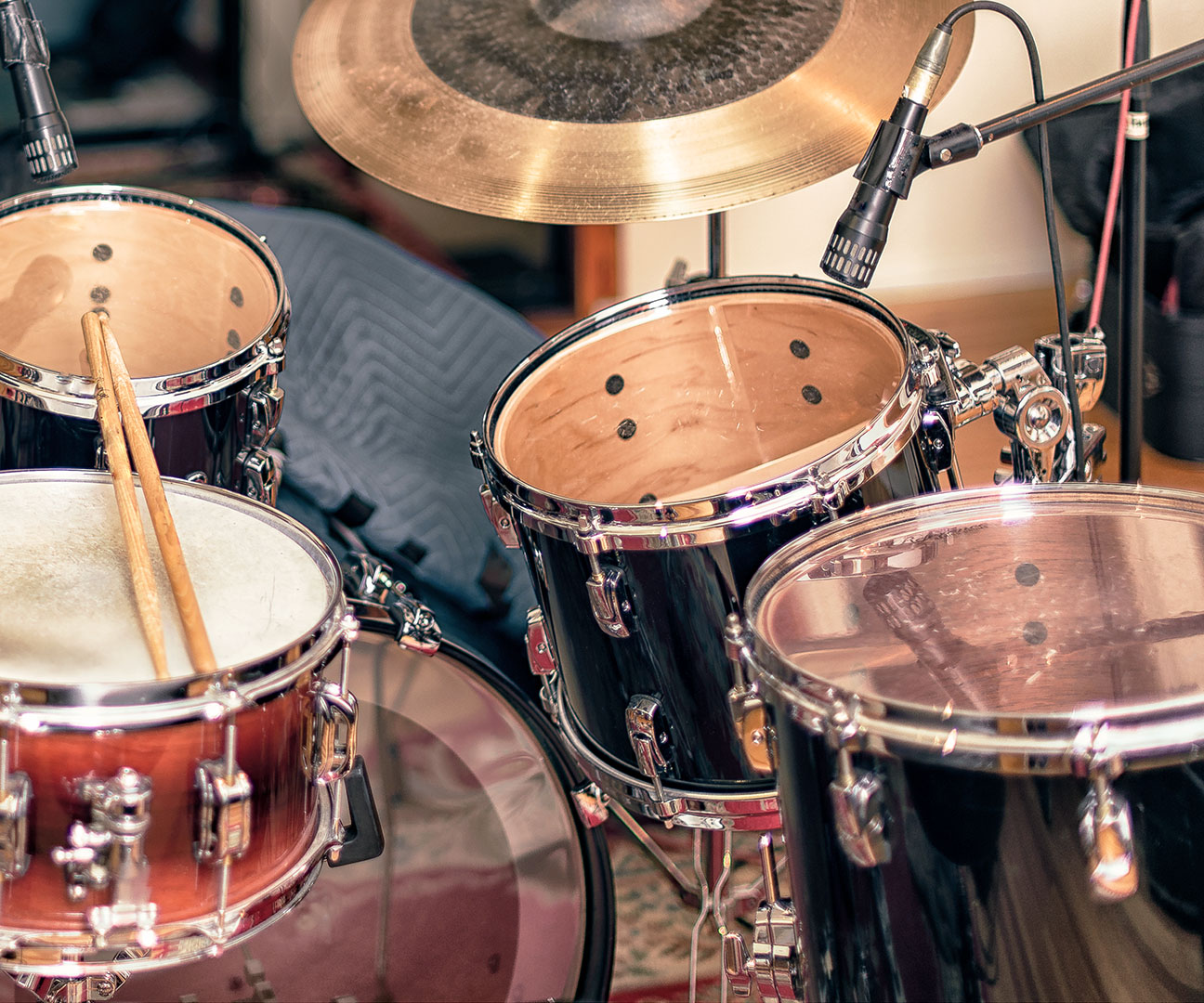

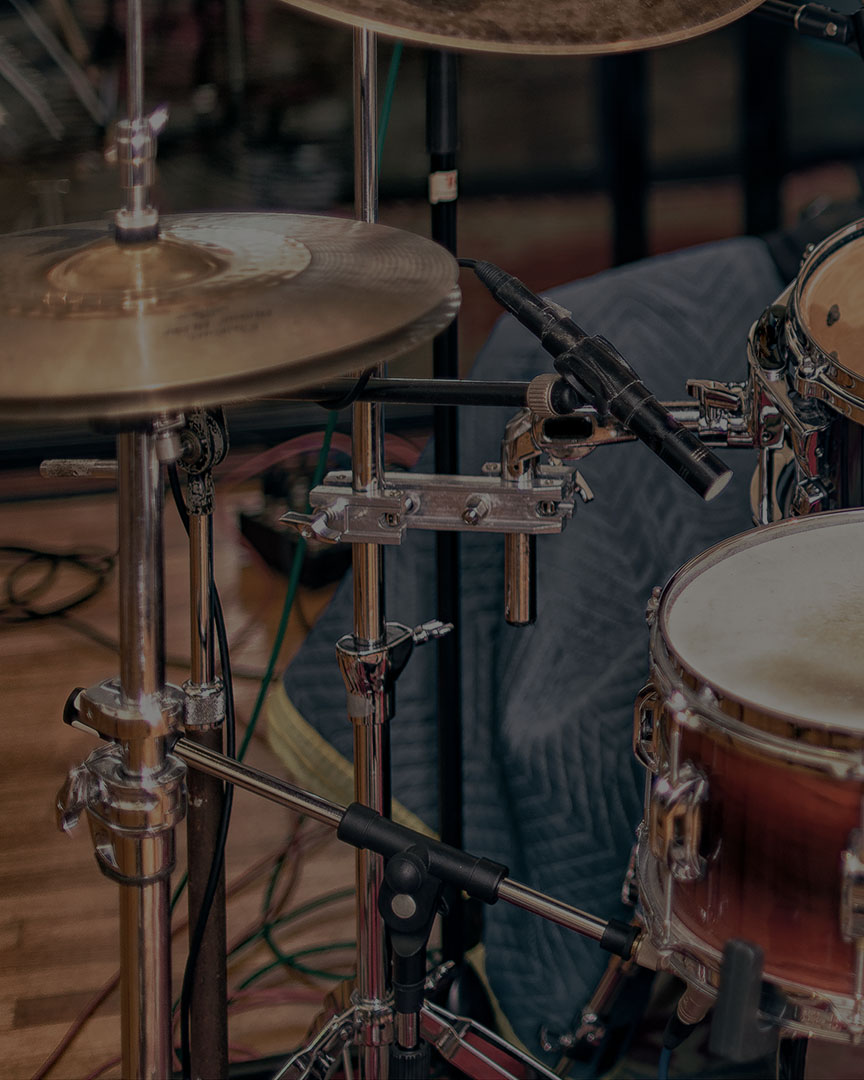

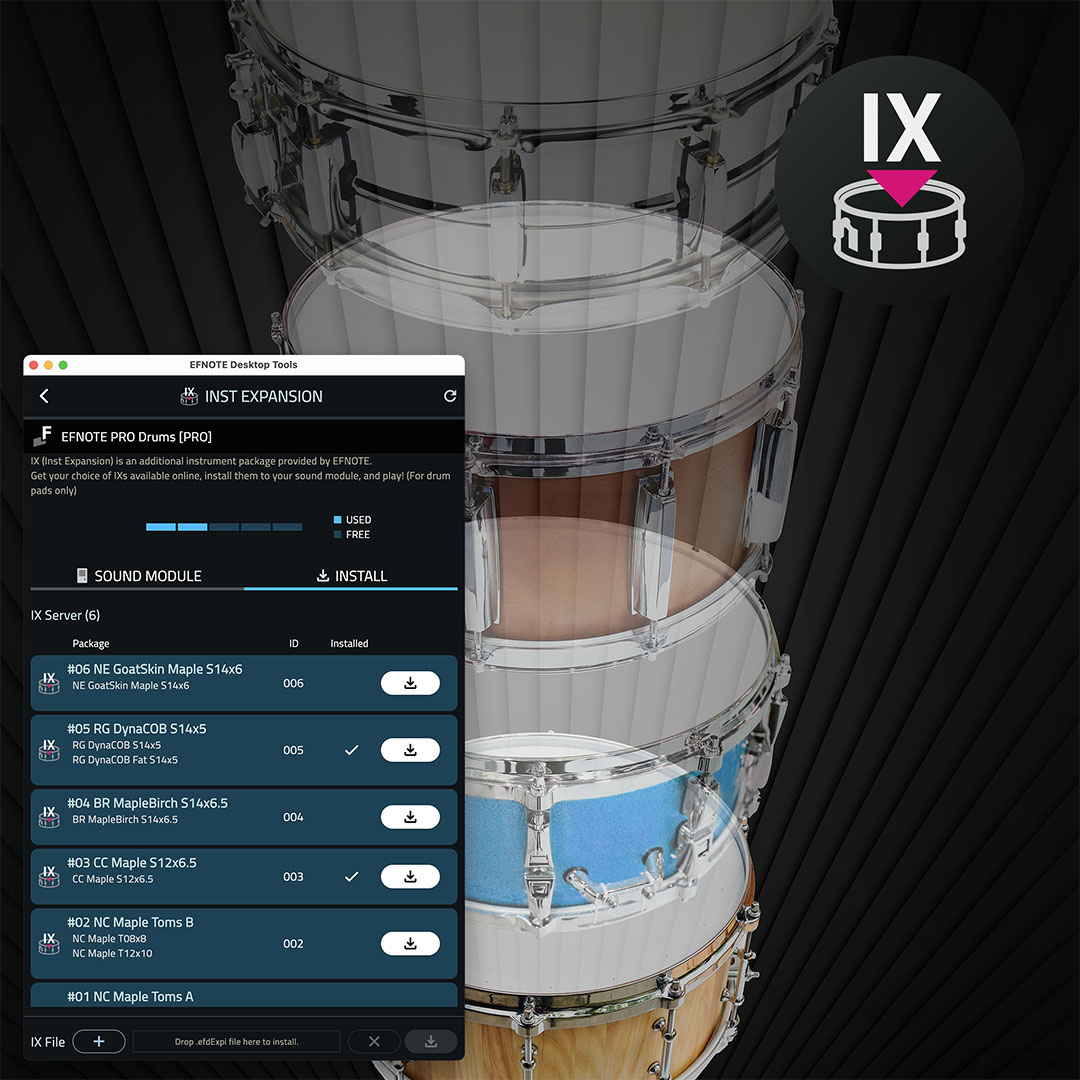

Instrument Expansion (IX)

  • A collection of add-on drum instruments for the EFNOTE PRO is now available online from the EFNOTE Desktop Tools app.
  • Quick IX installation and easy slot management are available.
  • Instrument Expansions can be used for drum pads (Kick/Snare/Toms) only.

    EFNOTE Desktop Tools runs on Mac/PC.

Overlay Tone (Layering)

  • Elements such as tambourines and EDM kicks can be easily layered over each drum sound
  • Attack Elements for reinforcing the attack
  • Percussion sounds
  • eKick, eSnare and eClap sounds

Design

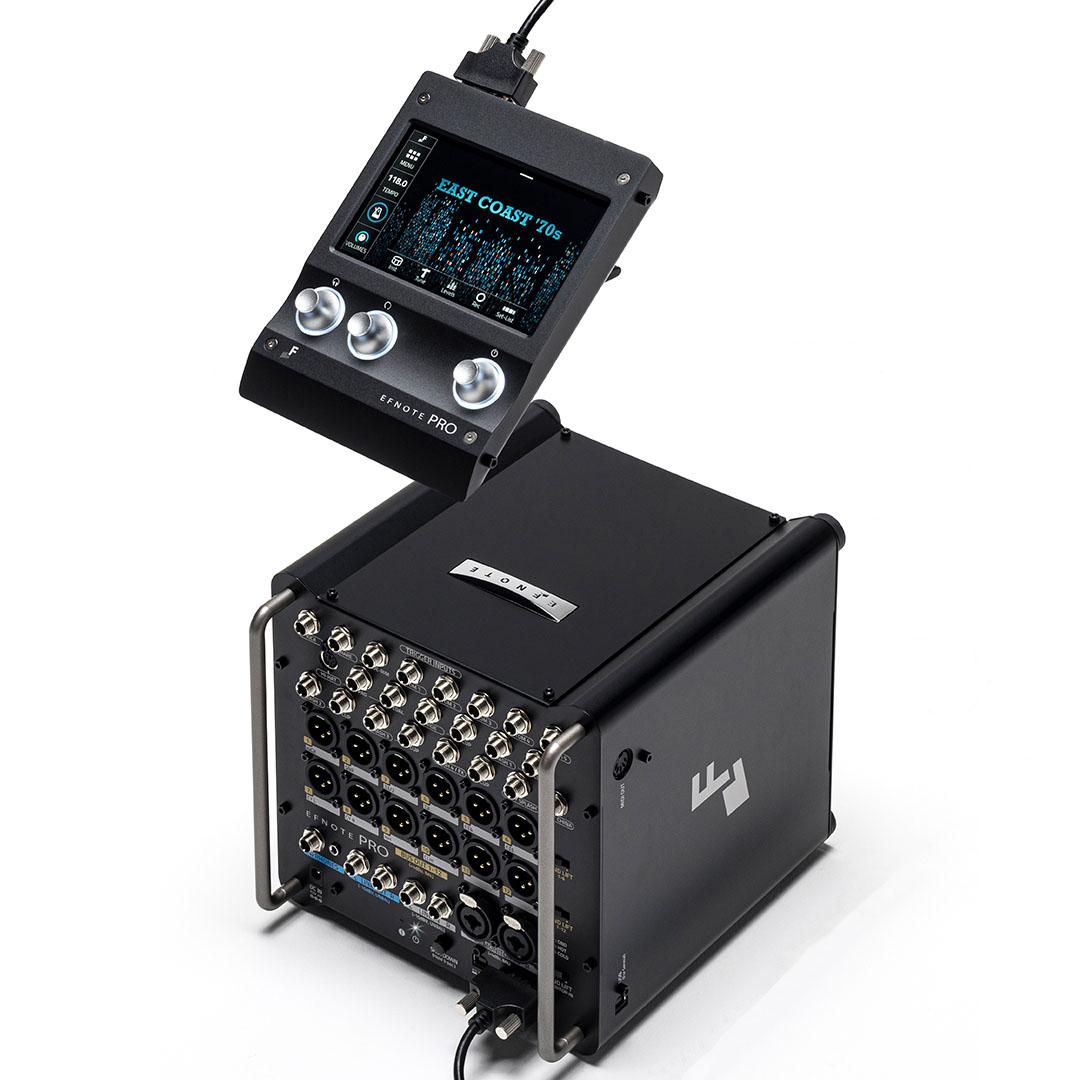

Innovative Two-Piece Design

  • The two-piece sound module provides both operability and expandability required by professionals
  • Low-profile and compact control surface with touch-screen full-color LCD
  • Floor-standing base unit with robust enclosure and reliable cable connections

Designed for Worship Concerts

  • "Its ability to produce crisp, clear drum tones while keeping stage volume to a minimum has been a game-changer for us." - Rock Harbor Church
  • Visit Churchfront to learn the real voices of worship drummers.

Discrete Foot Stage Light

  • A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box
  • Great for dark stages
  • Adjustable brightness

Beautiful Kit Images Inspire

  • Kit themes that highlight the musicality of each kit
  • Simple interface design for professionals
  • High-definition and high-brightness screen

Easy Left Handed Setup

  • Just like acoustic drums, EFNOTE Drums allow for easy left-handed setting
  • The Global Pan function makes it easy to adjust sound localization for left-handed setup

Perfect Customizing

  • Mix and match the expansion packs and optional components to create your ideal set
  • Beautiful white sparkle shell finish
  • Consistent pad design
  • Supports EFNOTE 3/3X/5/5X/7/7X pads

High-Powered Headphone Amp

  • 1x 1/4" jack + 1x 1/8" jack for headphones (can be used simultaneously)
  • Dedicated 2x headphone amp circuit for enough loudness
  • High quality DAC and audio circuit

Playability

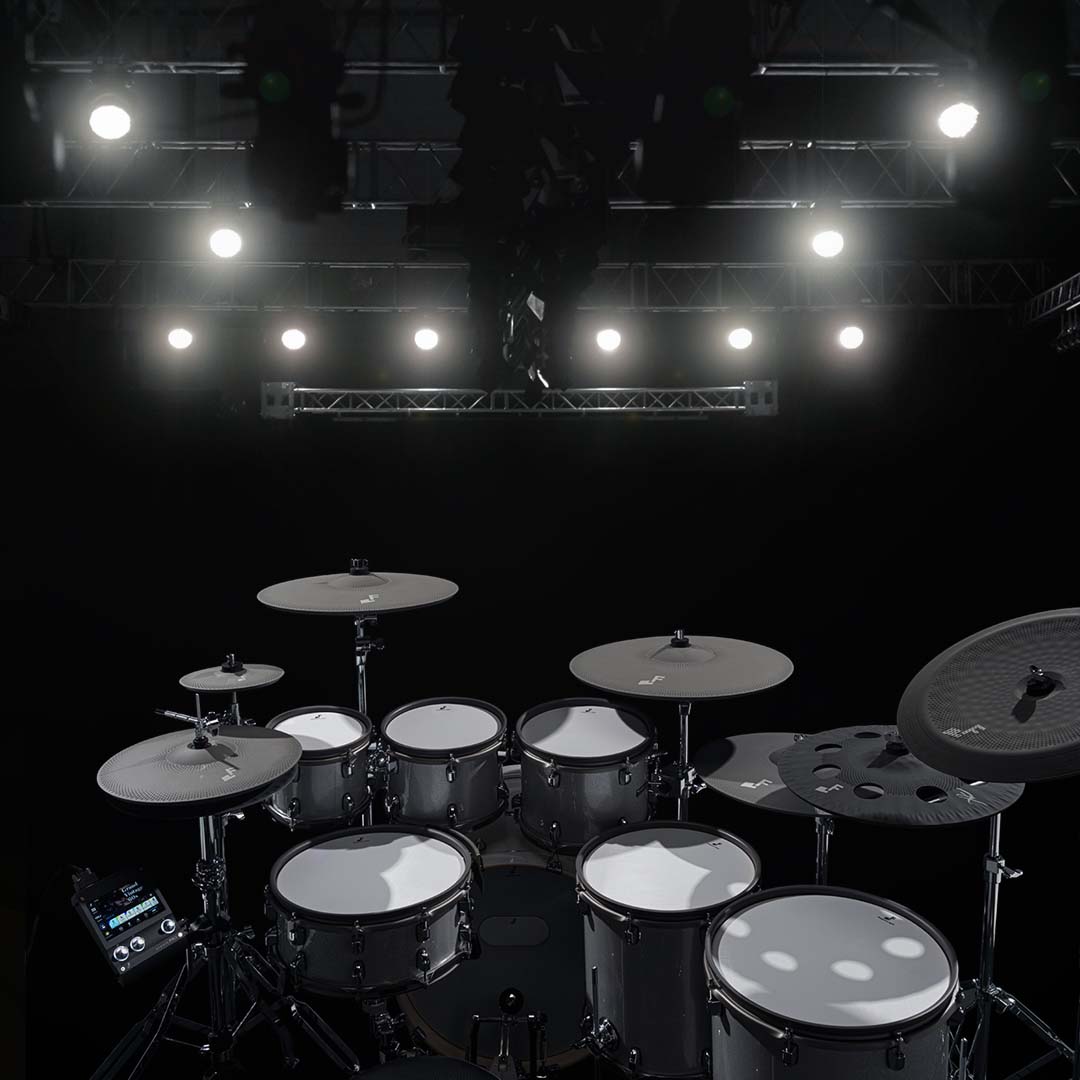

7 Shells and 8 Cymbals

  • Build a custom kit for any stage
  • 5x 2-zone input for toms
  • 6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals
  • Traditional individual trigger connections (TRS), for professional reliability
  • Except for the hi-hat which uses dedicated 6-pin cable

ELISE™ Sensing Processor 2.0

  • We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
  • The new algorithm for even more natural dynamics

Full Drum Pad Lineup

  • Birch wood shells and 2-ply mesh drum heads
  • Multi-sensor for hot-spotless and high-resolution sound
  • 20” and 16” kick drums
  • 14” and 12” snare drums
  • 8”, 10”, 11” rack toms

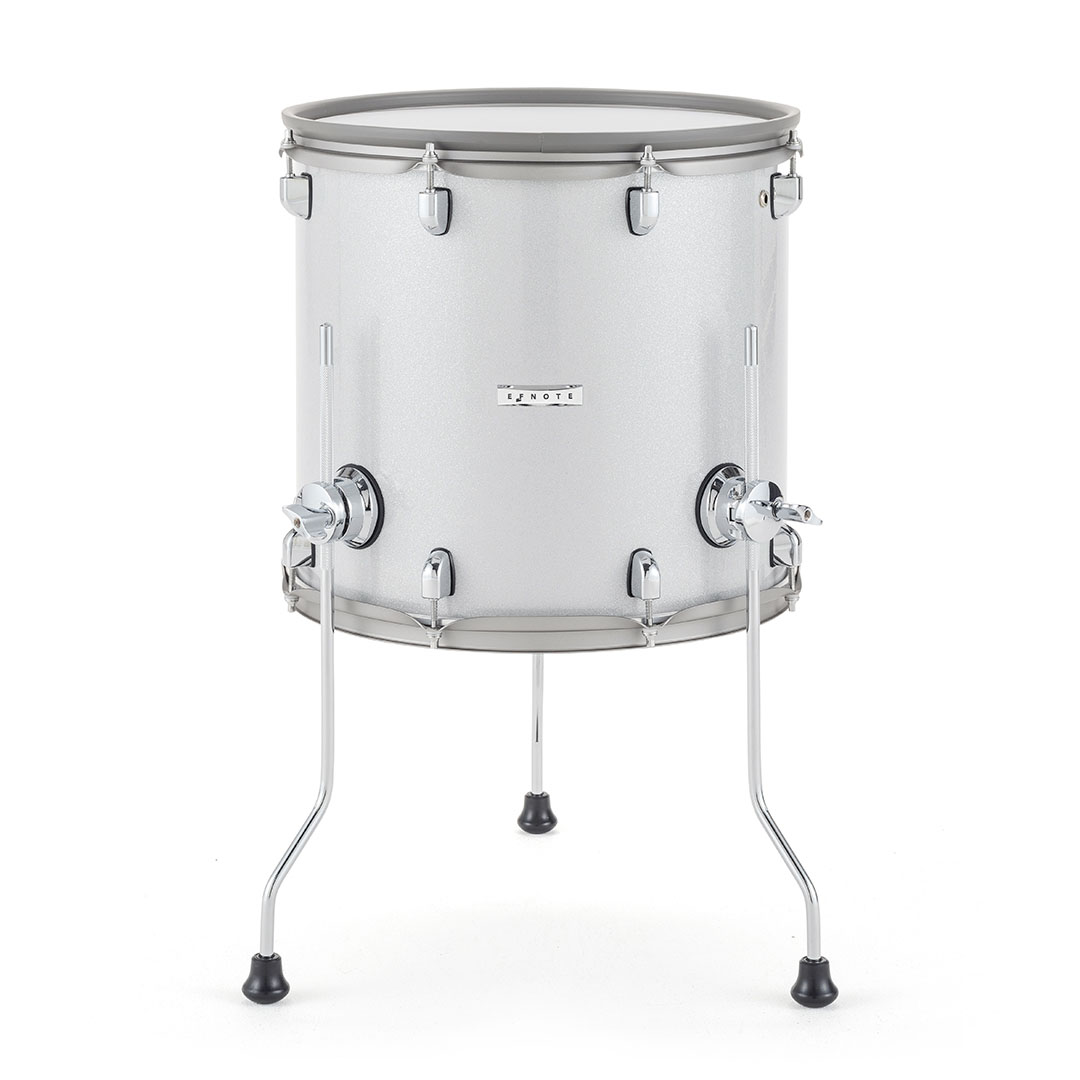

  • 12”, 13”, 15” floor toms

“World's First” Cymbal Pads

  • Tru-Motion™ 14” hi-hat cymbal
  • 8” to 20” full size cymbal lineup, the first of their kind
  • New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK™ mount

Connectivity

12-ch Buses to the Console

  • 12-ch buses, and 12x XLR balanced bus output
  • Dedicated bus compression for Bus 1 to 6
  • HPF and 2-band EQs for Bus 1 to 12
  • Stereo-Link for two adjacent buses
  • Ground lift switches

XLR Inputs from the Console

  • 2-ch Monitor In (XLR balanced) for monitoring return from the console
  • 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
  • Ground lift switch for Monitor In
V2.0

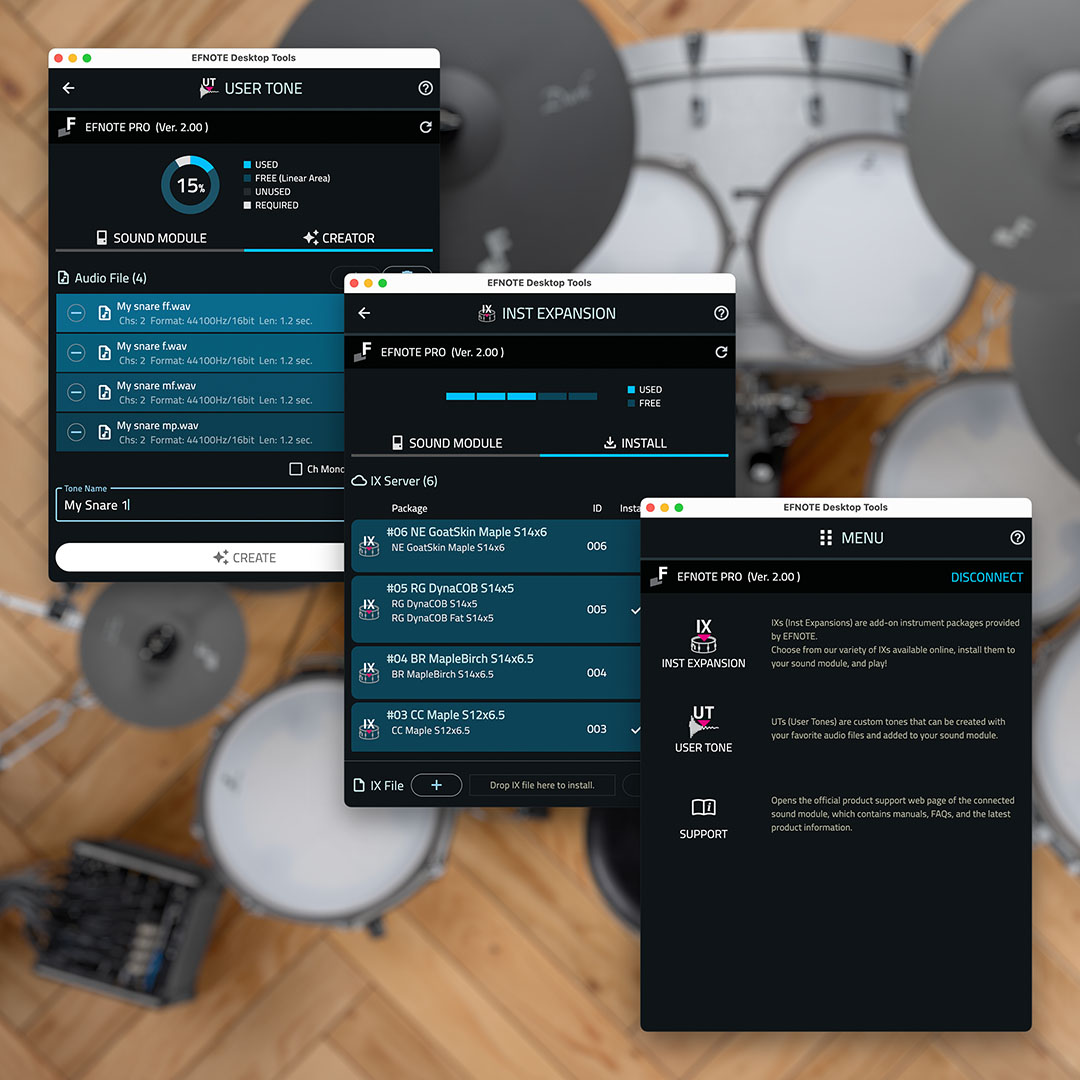

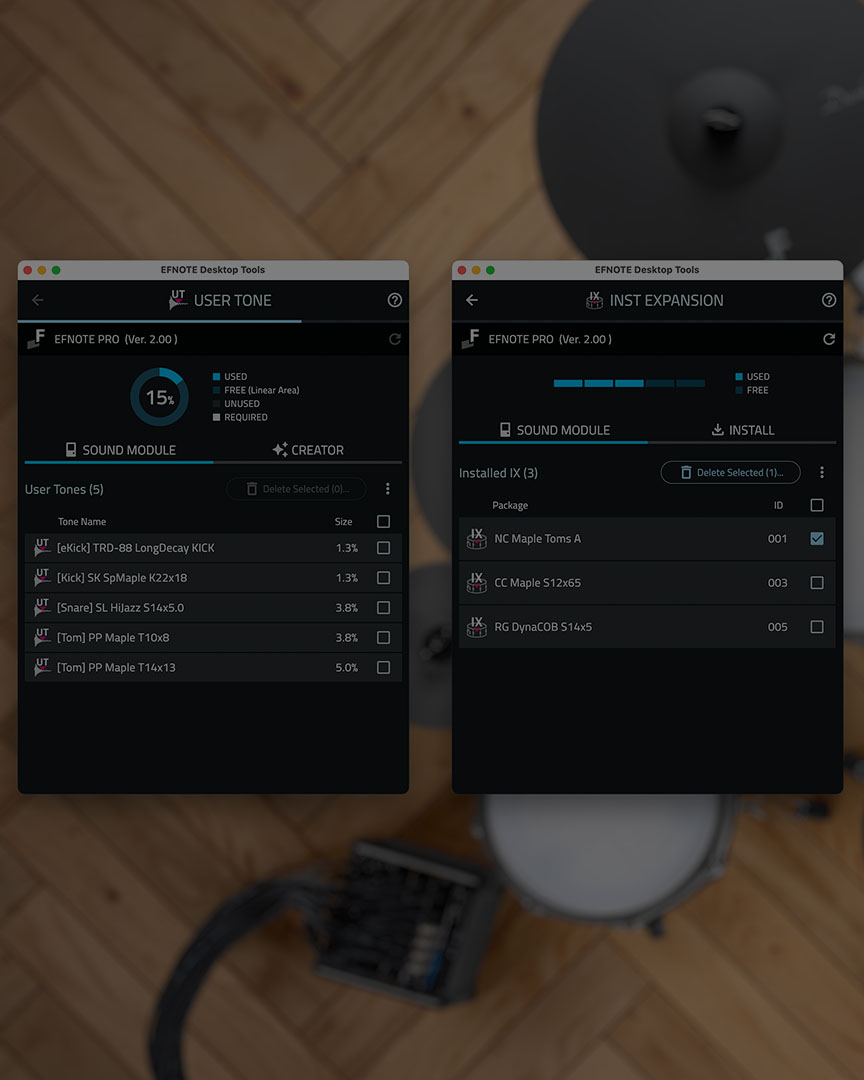

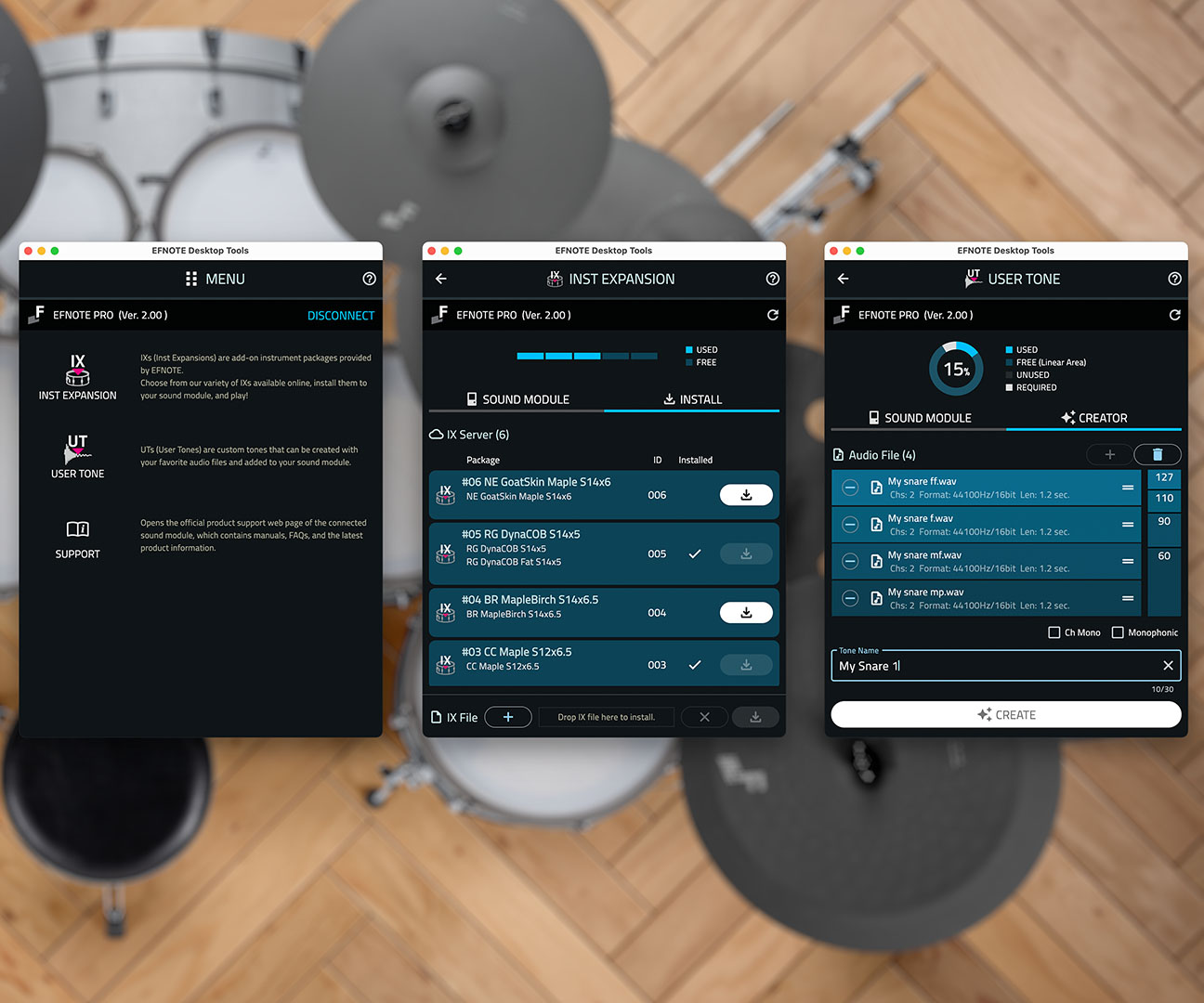

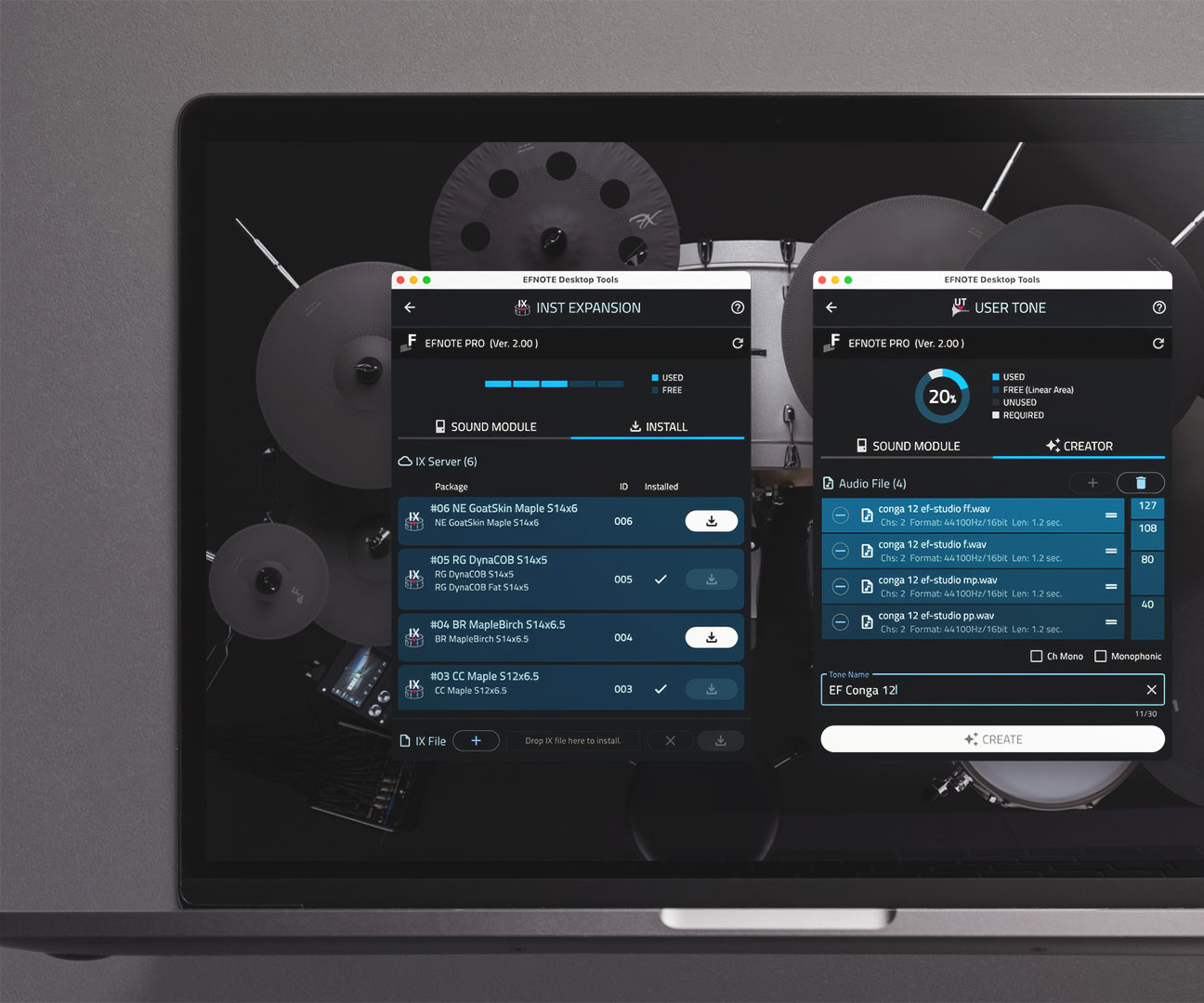

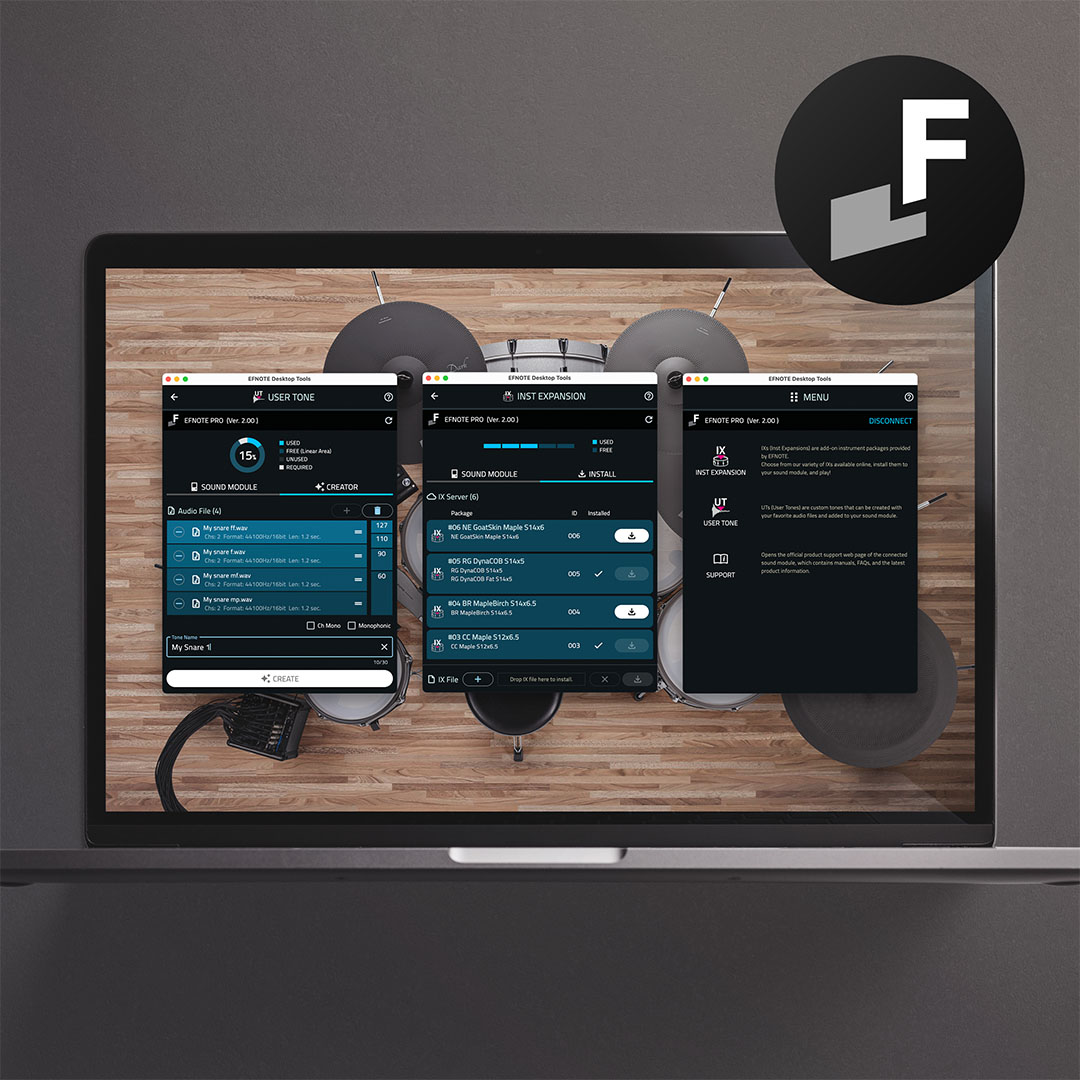

EFNOTE Desktop Tools

  • Allows for simple and intuitive management of UT and IX.
  • Compatible with Mac and Windows.
  • Visit the V2.0 page to get started.

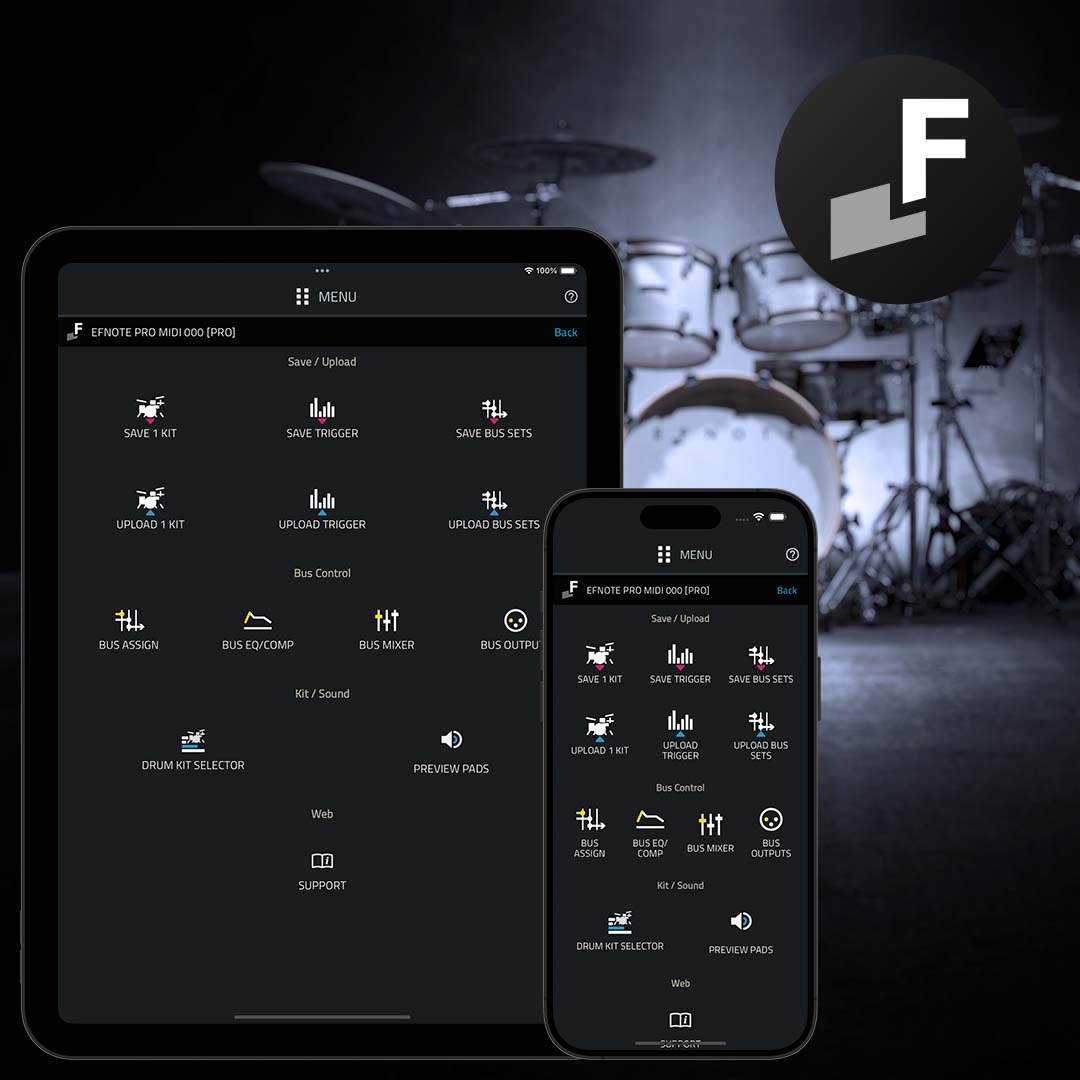

Remote Control

  • EFNOTE Tools App available for remote control/file-management
  • Save and upload kit/trigger/bus settings
  • Control the bus assign/effect/mix/output settings
  • Select the drum kit and preview each pad sound

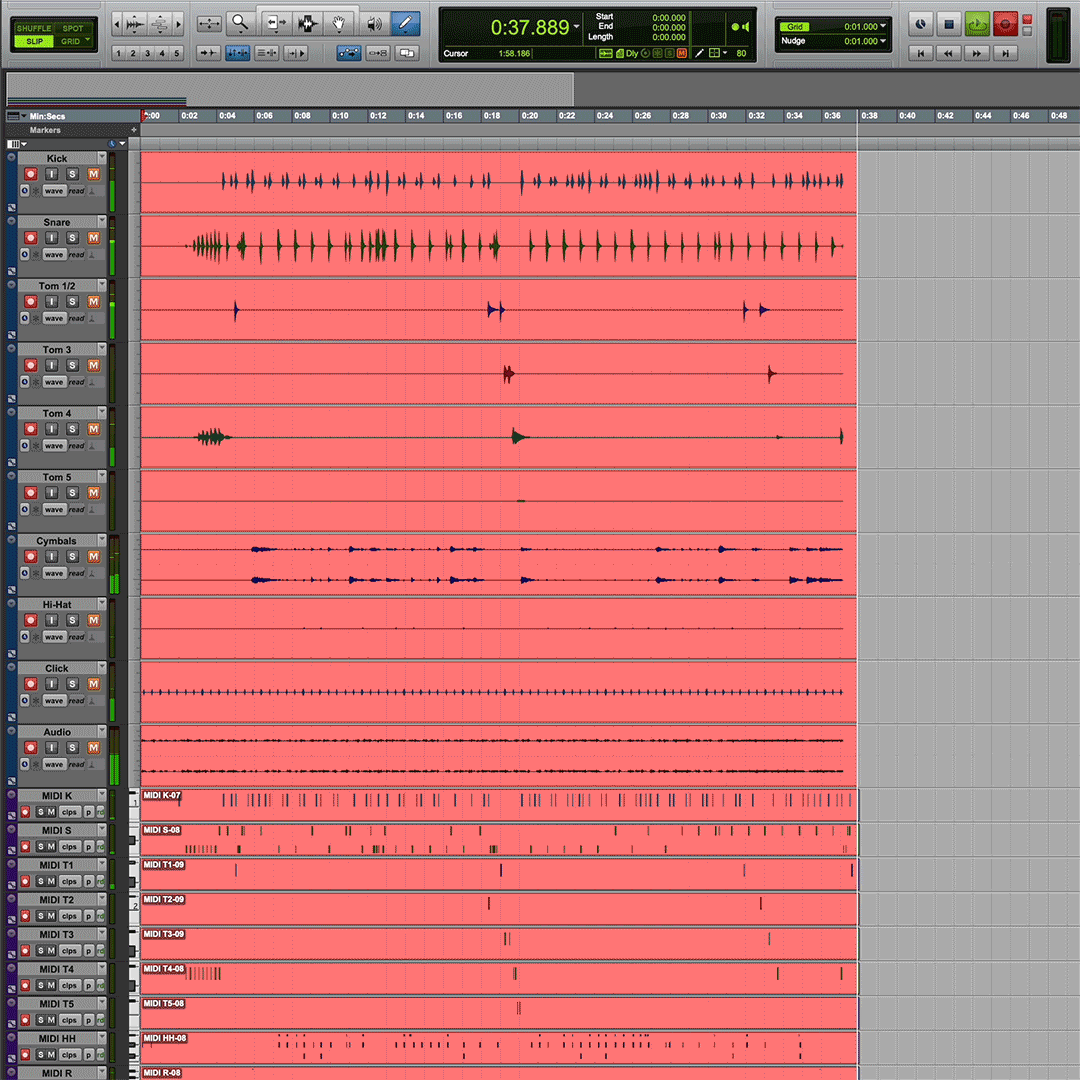

USB 12-ch Multi-Track Recording

  • Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available
  • Confirmed with major DAWs
  • 5-pin DIN MIDI Out

Bluetooth®

  • Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
  • Bluetooth MIDI

Usability (Bus Management)

Centralized Volume Control

  • Simply press the left knob to access the central volume management window
  • One-touch switching between Main L/R and Bus Mix L/R monitoring
  • One-touch mute for Monitor In

Graphical Bus Assigning

  • Graphical bus assignment helps you setup your intended routing correctly
  • All Pads can be assigned as both stereo and mono outputs
  • Click, Line In, Monitor In can be set to a bus individually

Bus Effect Overview

  • Allows viewing of each bus’s settings of effects and stereo link in one window
  • HPF, EQ, Comp, and Stereo-link can be selected ON/OFF at once

Personalized Mix and Pre Mix

  • Bus Mixer function allows you to mix the 12-ch buses and monitor them with the best balance for the drummer
  • Pre-mixing for small stage, with EQ and compression before sending to the console for fewer audio channels

Drum-Centric Bus Compression

  • Bus Compressor (for Bus 1 to 6) helps you dial in the sound, especially for non-robust PA systems
  • Designed with a focus on processing speed and accuracy
  • The attack time can be set to 0 ms
  • In the "0 ms" setting, it works as 100 microseconds

Bus HPF and Bus EQ

  • Bus High-Pass Filter and 2-band Bus EQ (for Bus 1 to 12) allow flexible sound correction according to the PA environment

Bus Gain Switches

  • If necessary, the signal-to-noise ratio can be improved by increasing the gain of each bus

Output Management

  • Attenuator (up to -30dB) for XLR outputs
  • XLR 5/6 can output Bus Mix L/R instead of Bus 5/6 for a small mixer
  • XLR 1/2 can also output Main L/R instead of Bus 1/2
  • Rename-able bus labels

HPF/EQ for Main L/R

  • High-pass filter and 2-band EQ are also available even when using Main L/R for 2-mix audio output

Usability (Operation)

Swipe-Able Kit/Inst Change

  • Easily change kits/instruments by simply swiping the screen
  • Kit switching can be selected between two methods: swipe and touch

Quick Tuning and Muffling

  • Even while playing, you can easily adjust the tuning and muffling
  • Cymbal tuning (pitch) and muffling (sustain) can also be changed

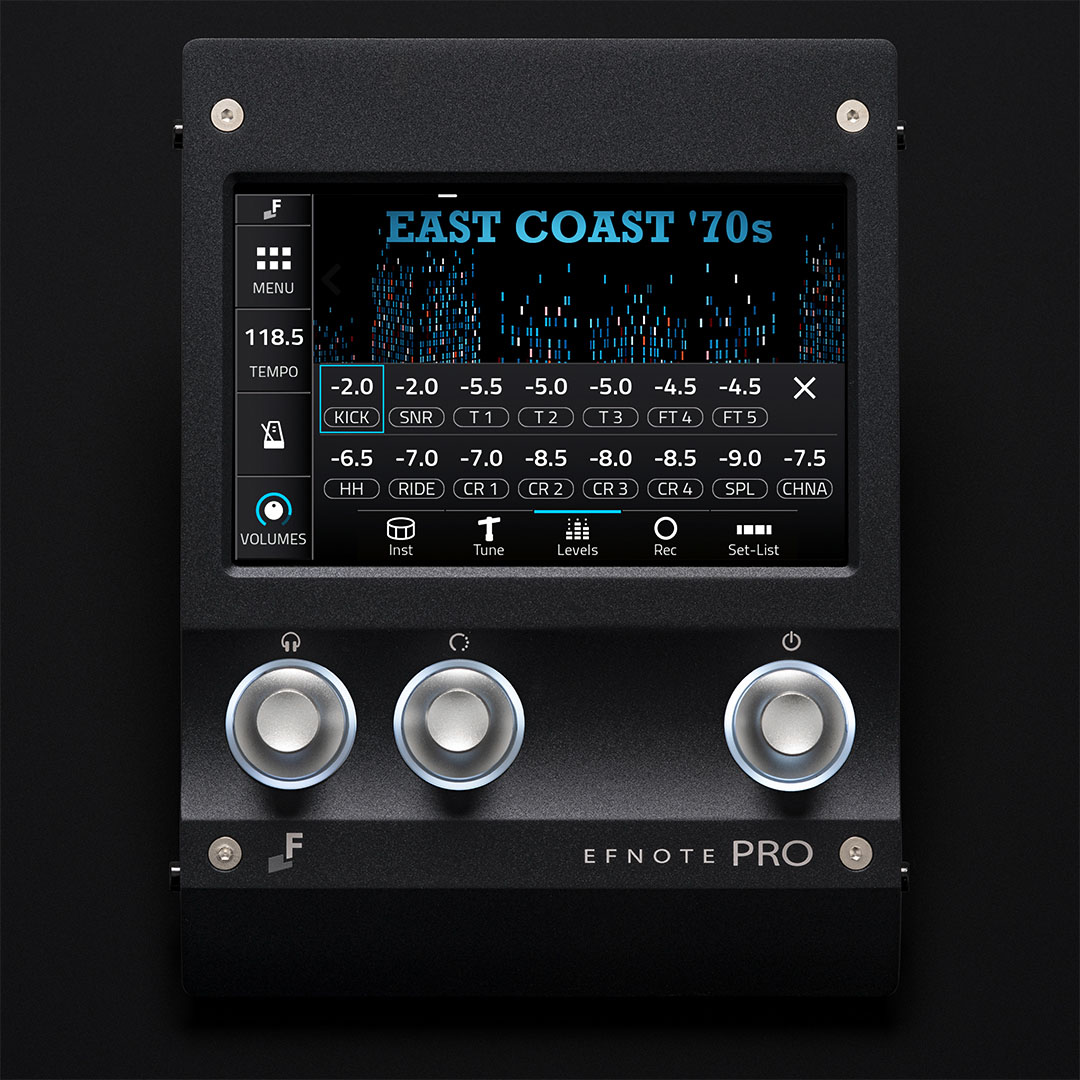

Overviewing Pad Levels

  • Pad levels are displayed in decibels (dB) for proper adjustment

One-Touch Recording/Playback

  • Easily record grooves and fills, when inspired
  • Record your beats and play them back to check the sound out in front
  • You can save/load the recorded drum-play data to a USB flash drive

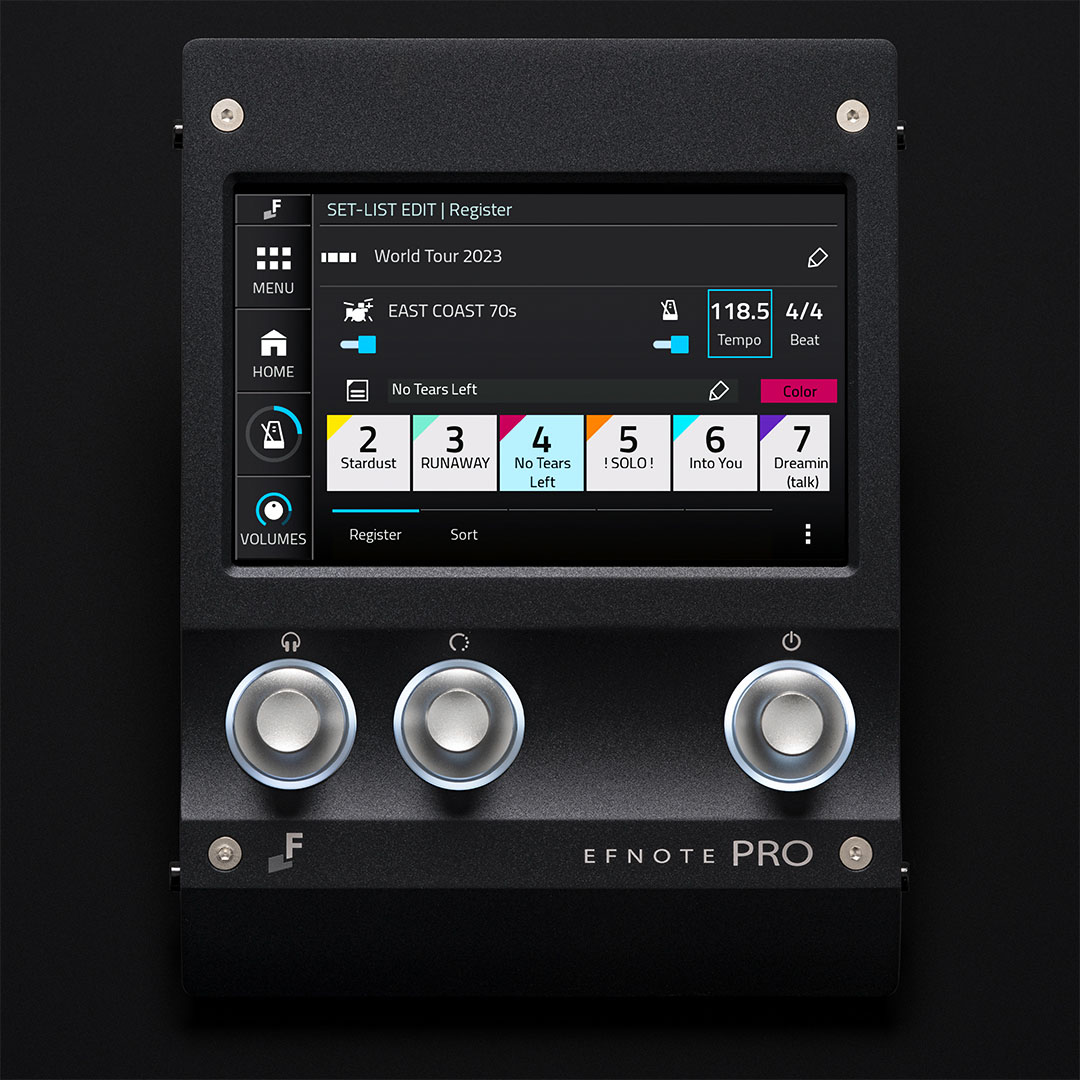

Set-List for the Show

  • Set-list feature enables you to configure kit order with tempo for each song
  • Each color of button and its description can be customized

Flexible Metronome (Click)

  • Tempo setting in 0.1 increments
  • 7 types of click sounds
  • Store your favorite click setting and recall it quickly

Global Pan

  • Facilitates panning for all sound kits, coinciding with changing the drum setup
  • Control over your stereo image
  • Panning can also be set for each sound kit

Assignable Knobs

  • The two left knobs can be assigned to functions you need while gigging
  • They can also be disabled to prevent accidental operation

Customizable Kit Theme

  • Editable user kit theme including the text color and background image
  • Enhances visibility and musicality

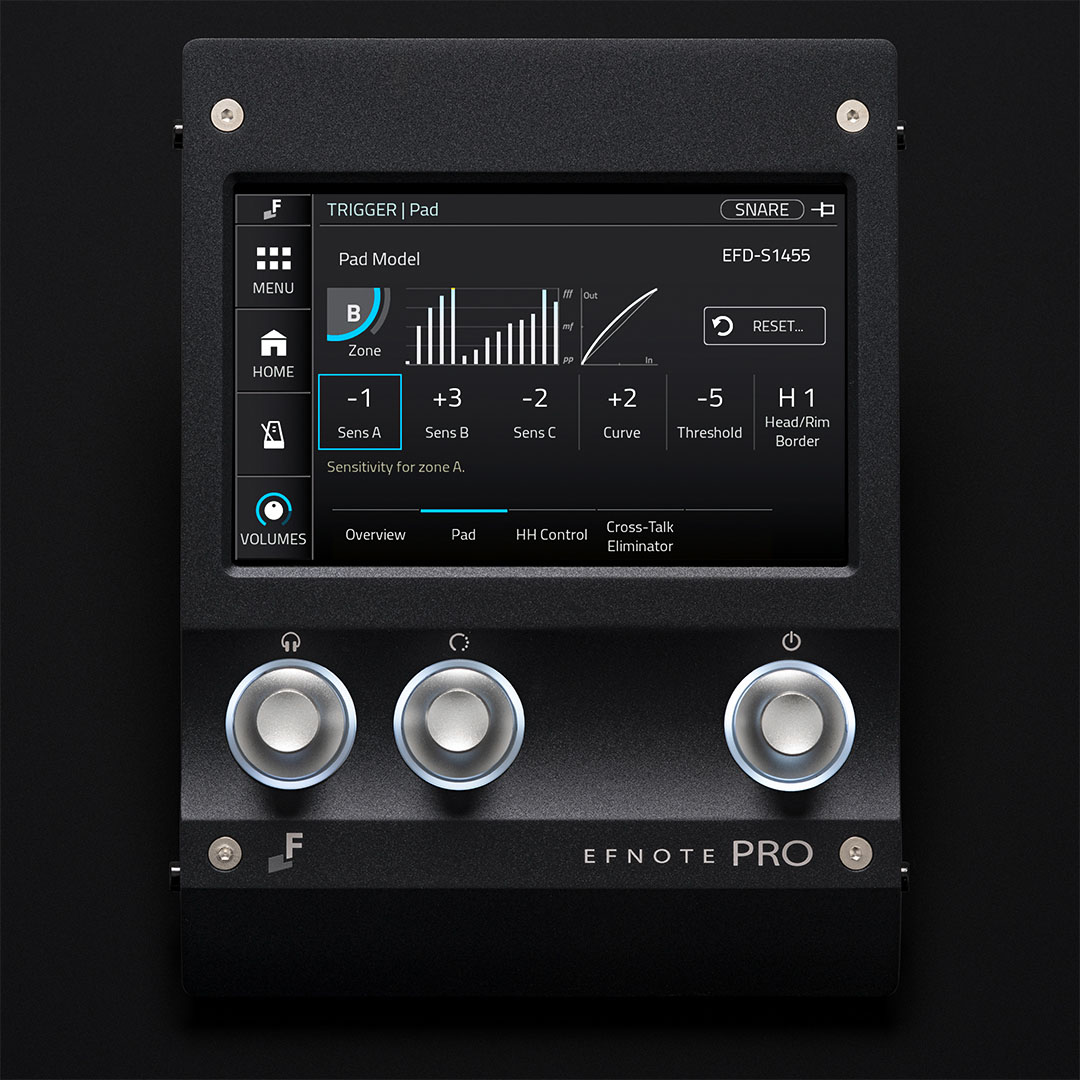

Intuitive Trigger Setting

  • The graphical trigger setting allows you to set the correct sensitivity
  • Simple and intuitive interface

Load Settings According to the Gig

  • The sound and performance environment can be saved and restored for each gig, stage and player
  • A full backup is also available to restore all environments

Configurations

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

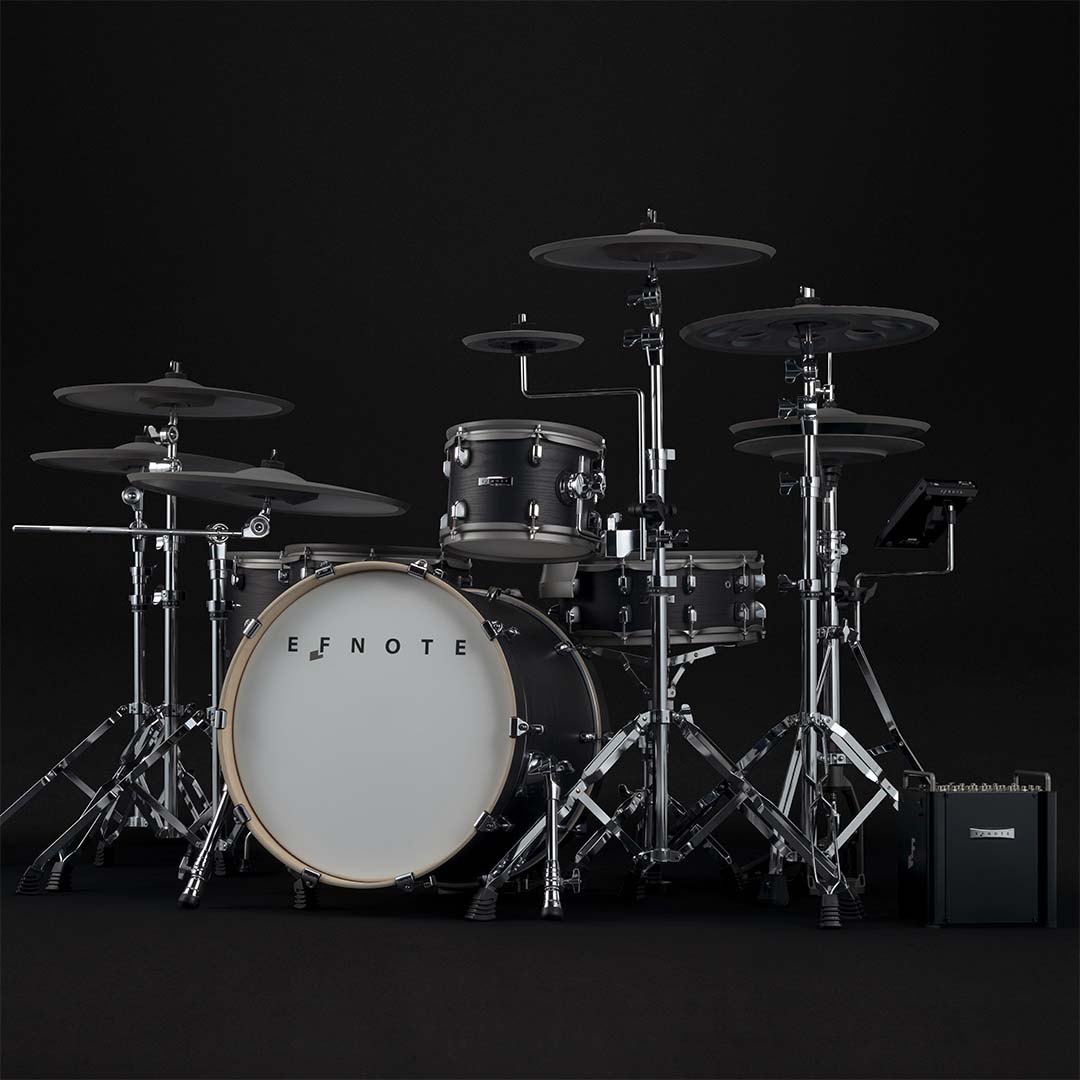

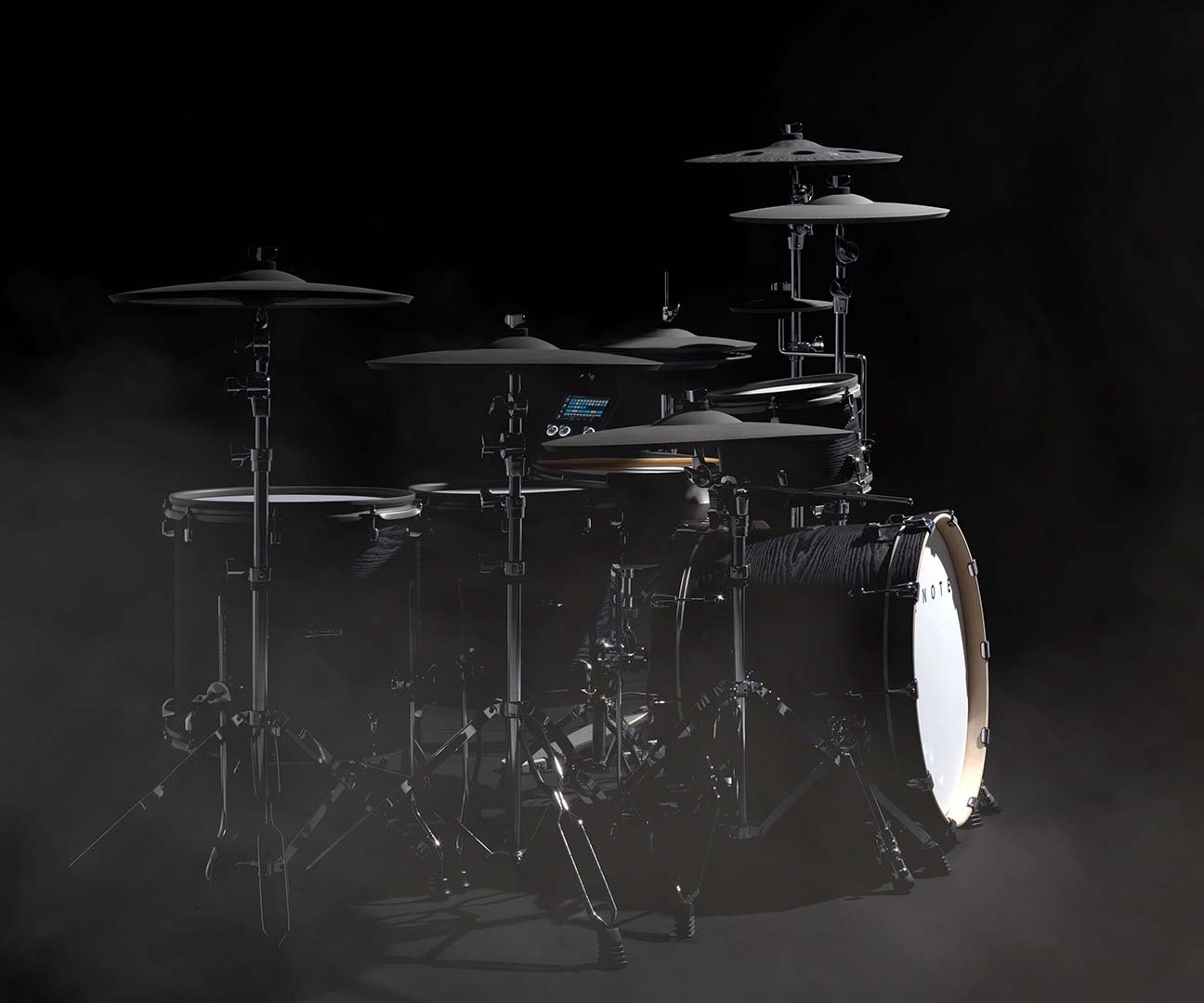

PRO X Series

A special pre-expanded setup with a Black Oak-ish finish that enhances dark stages such as WORSHIP concerts.

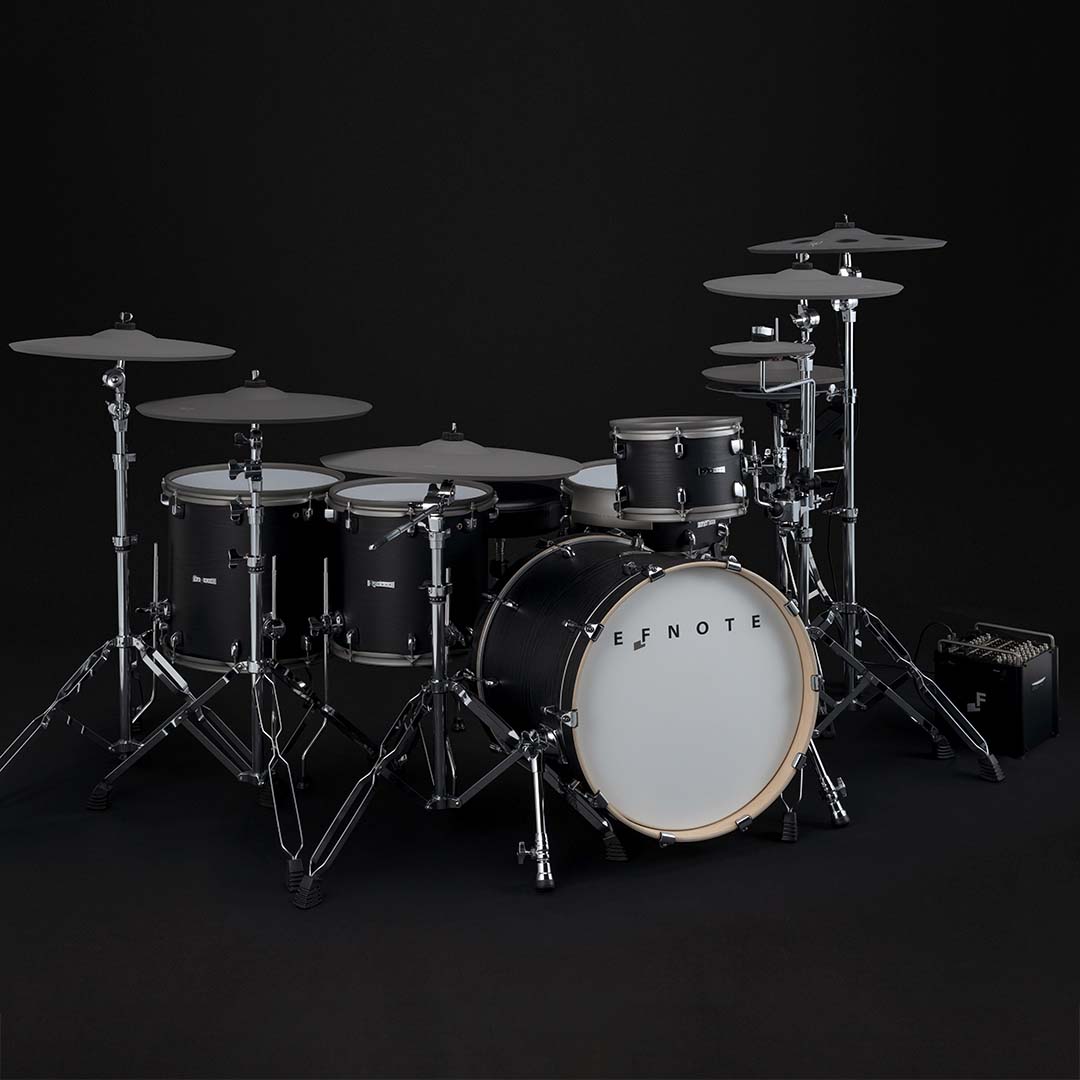

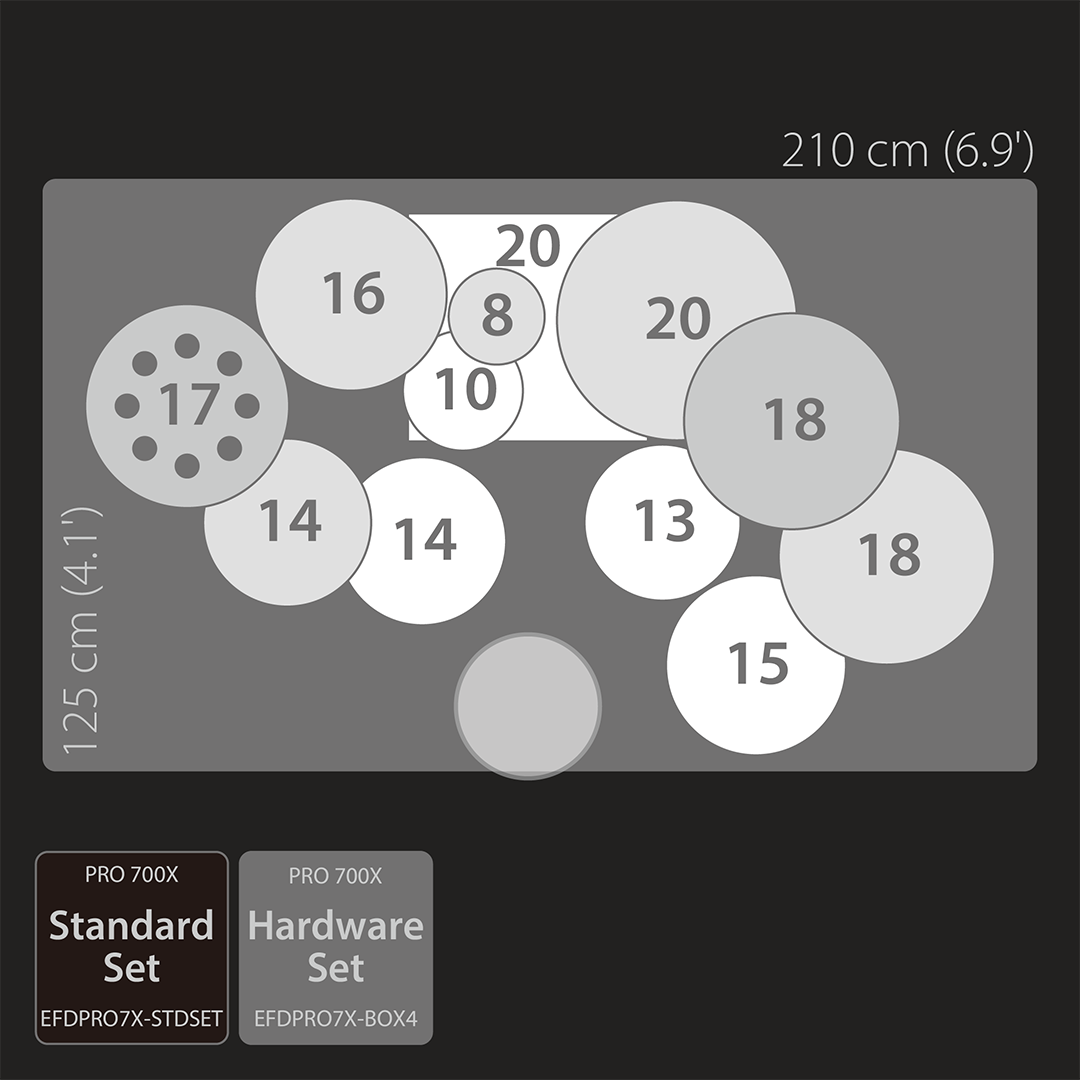

PRO 703X, 1-up 2-down full-size shell kit, provides a modern look and wide range of musicality with 7 different cymbals.

PRO 500X, 1-up 1-down compact shell kit, features an upsized 14" snare drum and real size 6 cymbals for high playability.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

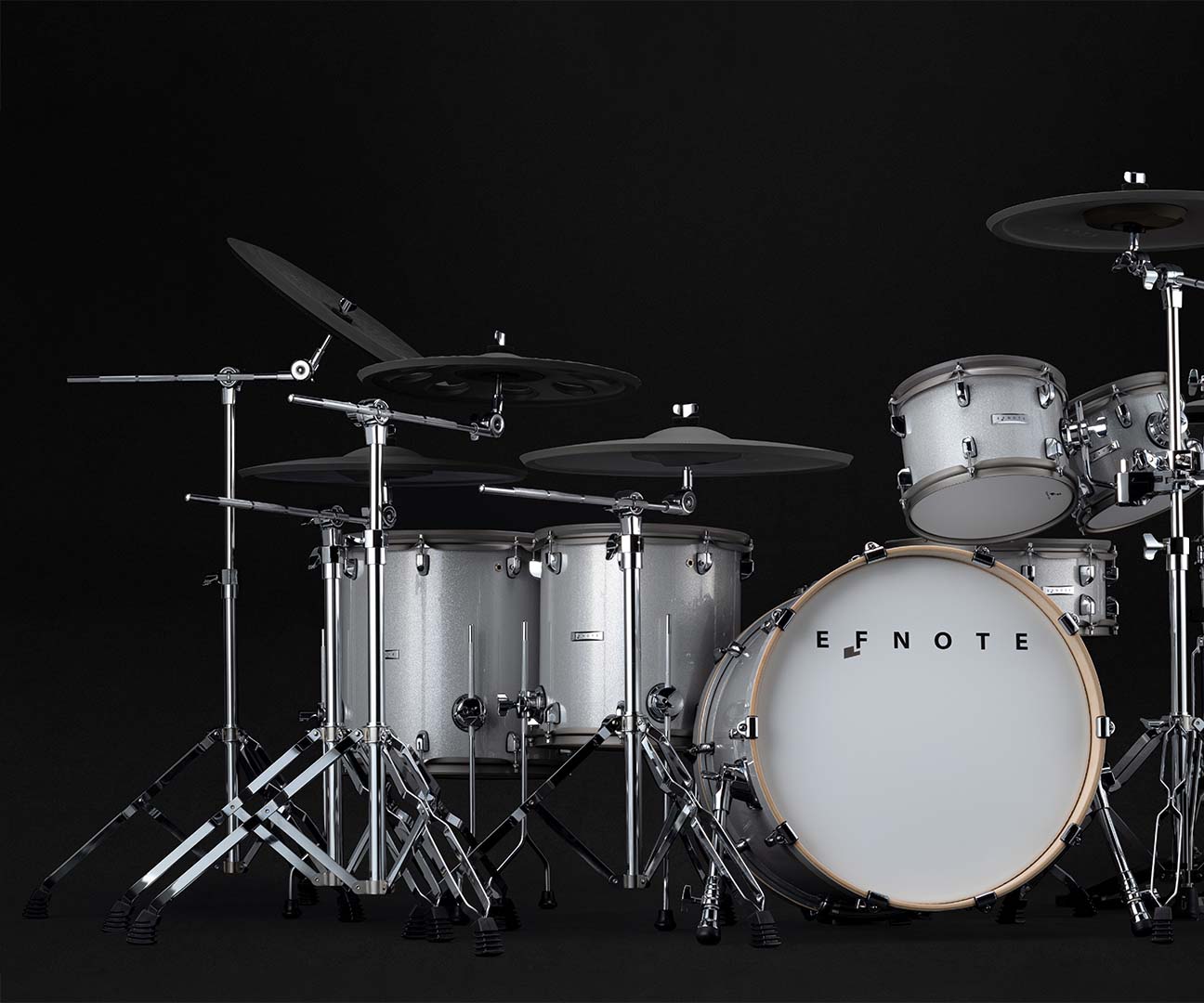

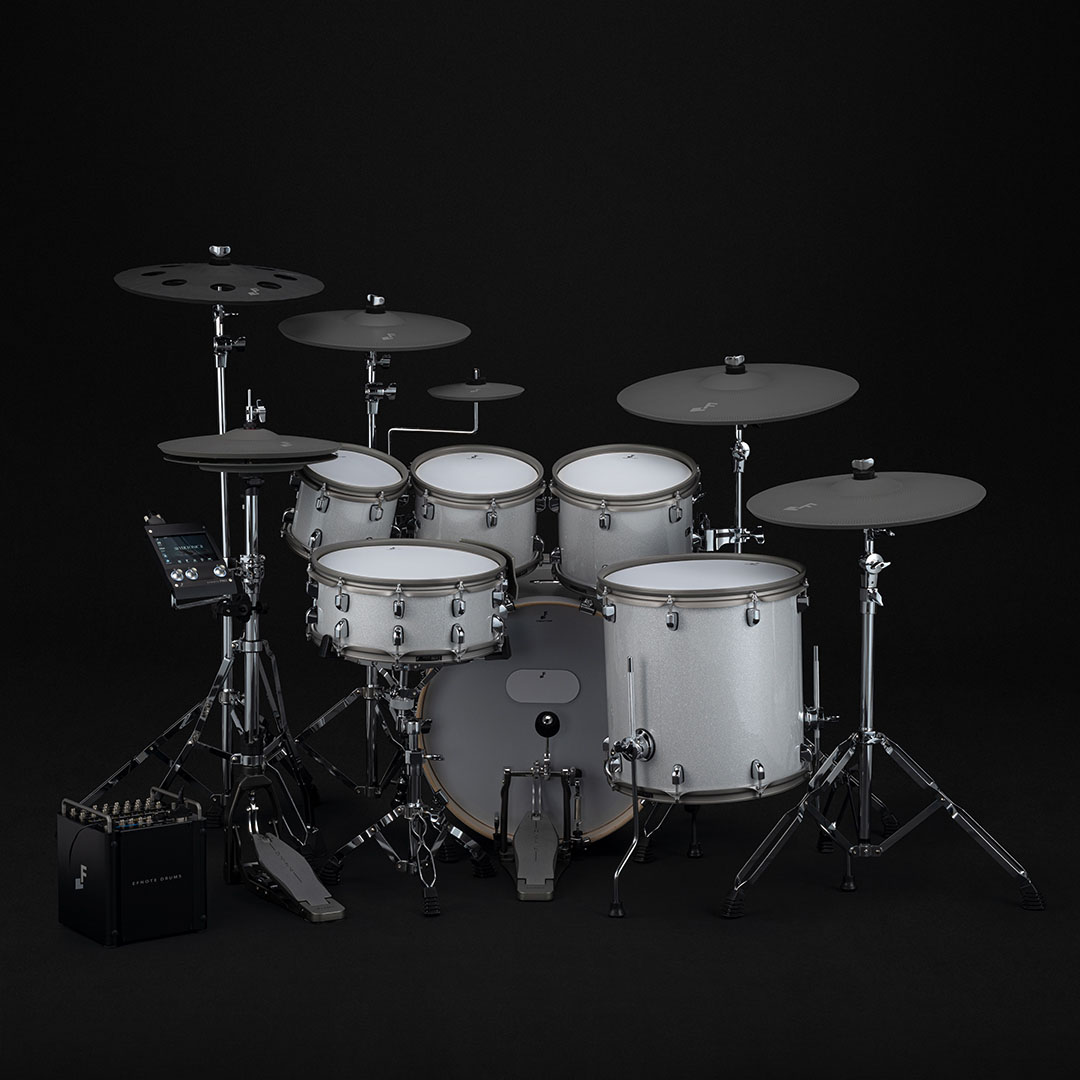

PRO 700 Series

Full-sized drum setup, building upon 20x15” kick drum for medium/large stages, church and studio. It will give audiences a full visual and musical impression.

The PRO 700 series supports all EFNOTE drum/cymbal pads for expanding.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

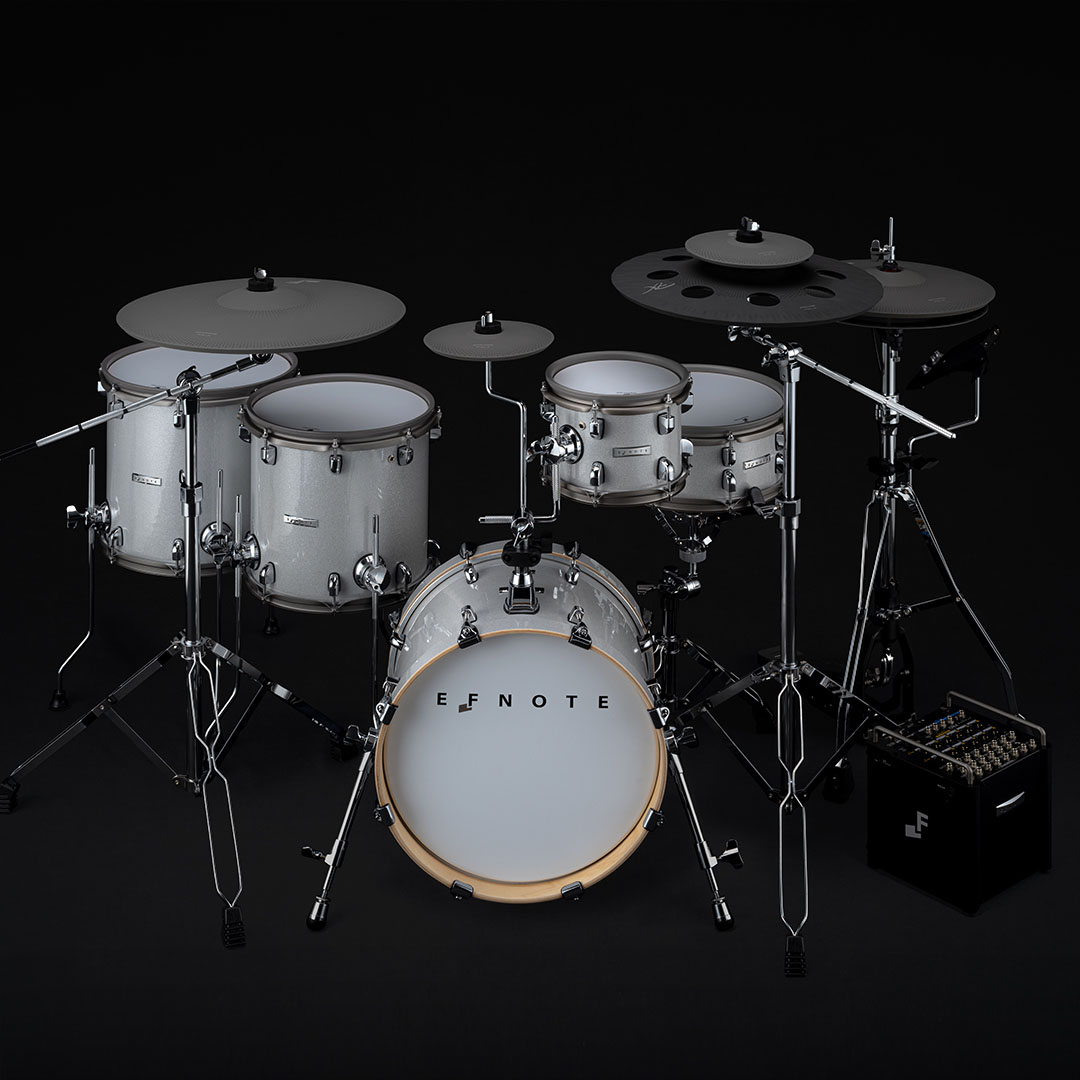

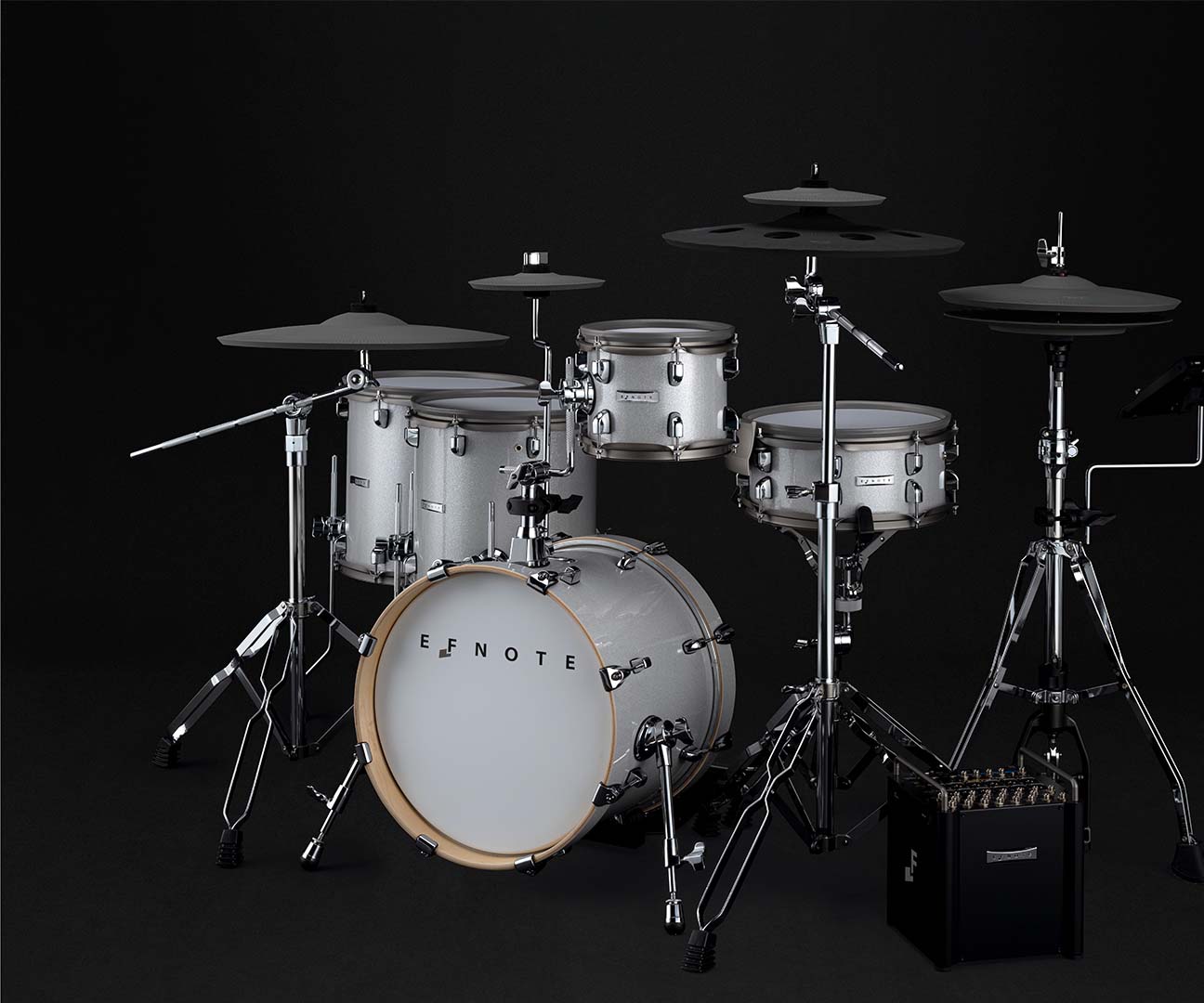

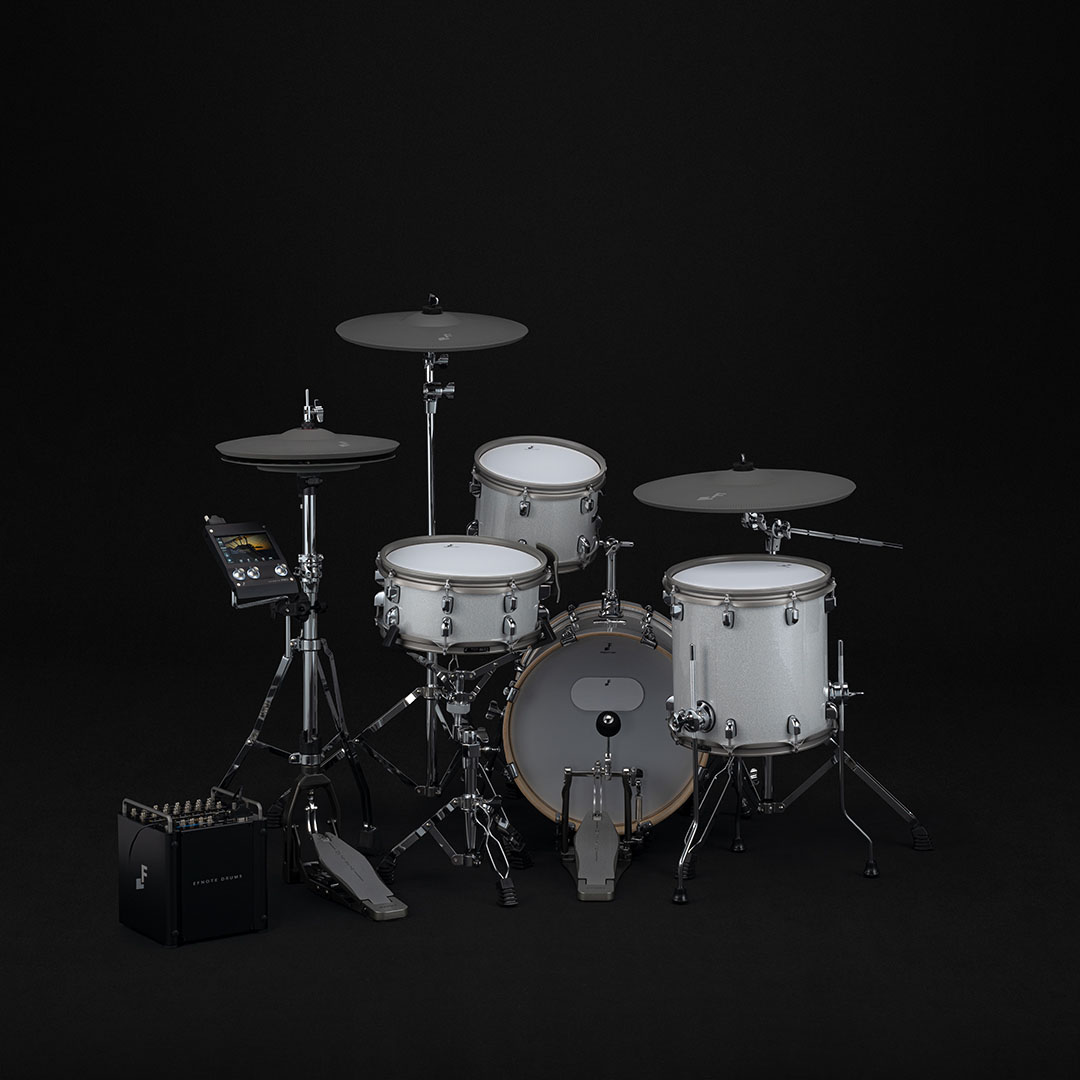

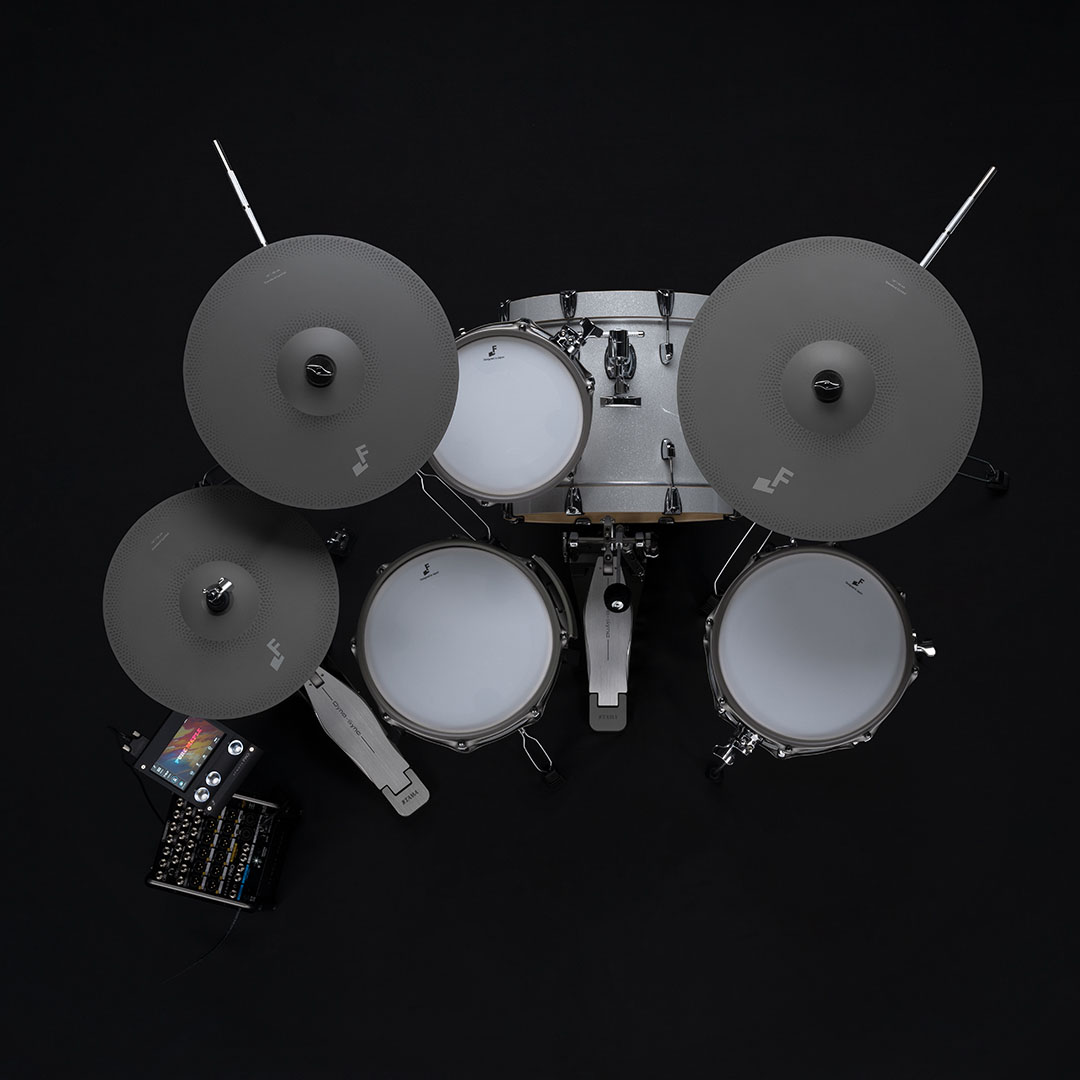

PRO 500 Series

Based on our 16” kick drum, this compact kit will offer practicality and portability. For small stages, church, cafe, bar, party, wedding and home-studio.

The PRO 500 series supports all EFNOTE drum/cymbal pads for expanding.

Product images are for illustration purposes only, actual products may vary.

In some countries, the specifications and configuration shown may vary.

Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.

Other models or customized setups are shown for some images.

Some technologies and designs are patented or under patent pending.

Company names, brand names, etc. appearing in photos are registered trademarks or trademarks of the respective companies.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc..

EFNOTE PRO Videos

EFNOTE PRO Preset Drum Kit Sound

  • Performed by Michael Bedard (Artesia Pro) on EFNOTE PRO 707 drum kit
  • Recorded in REAL-TIME, NO POST-MIDI-EDITING, NO POST-SOUND-PROCESSING
  • Data format: .WAV file (48 kHz/24 bit)

Grand Vintage '60s
LEGENDS
sforzando
EAST COAST '70s
THE FULL STROKE
Power Maple
Tru Classic
efnote blue
FunQ It UP
MODERN BIRCH
Muffle it!
OFF THE WIRE
improvisation
Studio Rock
HEADBANGERS
DRY & DARK
SILVER FONIC II
HOMMAGE
THE ROAR OF THE '70S
PURE MAPLE
resonance
BEAT MAKER
FOCUS II

Reproducing all or any part of the contents is prohibited.

Kit-Config Comparator

Find the Best EFNOTE PRO Kit for You

Kit-Config Comparator

PRO X Series (Special Configuration with Black Finish)

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

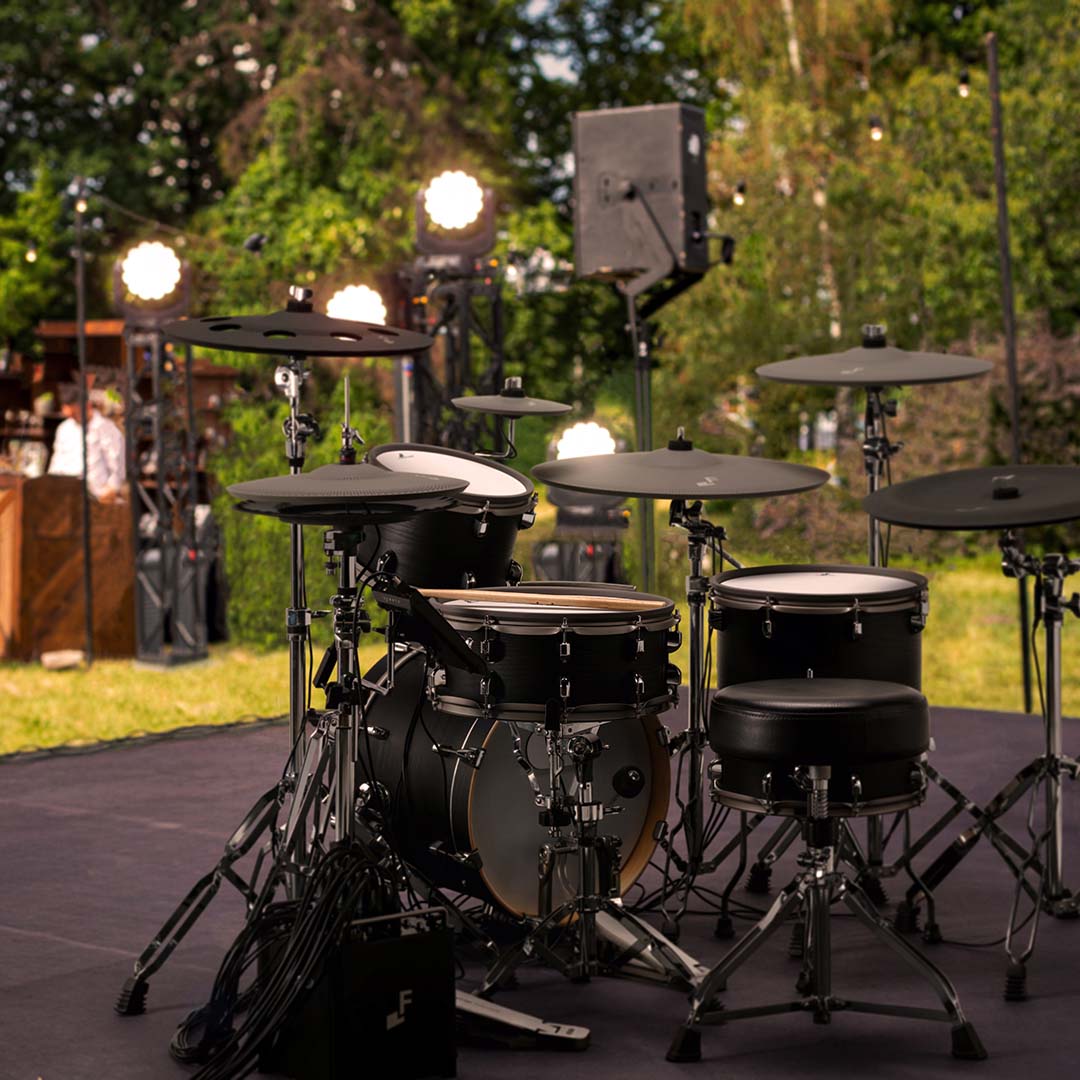

PRO X Series

With a beautiful matte black finish, the X Series is optimized for dignified and darker stages such as WORSHIP concerts.

PRO 703X set is configured with 5 shells and 7 cymbals to suit different styles of music and drummers.

PRO 500X is specially expanded to the size of a real acoustic drum set to maximize playability, based on the PRO 500 compact kit.

Electronic Drums EFNOTE PRO
  • 5 Shells, 7 Cymbals

Born to Be on Stage

  • 20" kick, 14" snare drum, 10" to 15" toms
  • 14" hi-hat, 20" ride cymbal, 8" to 18" crash cymbals
  • 5 shells and 7 different cymbals in one package, the variety of pad designs to visualize the sound for your audience
  • Best for rock&pop/worship/musical/streaming concerts
Electronic Drums EFNOTE PRO
  • 4 Shells, 6 Cymbals

Uncompromised Playability

  • 16" kick, 14" snare drum, 10" and 13" toms
  • 14" snare & 20" ride provide realistic feel and greater playing width and depth
  • 14" hi-hat, 16" crash, 17" effect, 18" china and 8" splash, the diversity of cymbals expresses the artist's finely honed sensibility
  • Best not only for gig, but for home recording or video streaming

PRO 700 Series (Full-Sized Configuration)

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

PRO 700 Series

Full-sized drum setup, building upon 20x15” kick drum for medium/large stages, church and studio. It will give audiences a full visual and musical impression.

The PRO 700 series supports all EFNOTE drum/cymbal pads for expanding.

Electronic Drums EFNOTE PRO
  • 4 Shells, 3 Cymbals
Electronic Drums EFNOTE PRO
  • 5 Shells, 4 Cymbals
Electronic Drums EFNOTE PRO
  • 5 Shells, 5 Cymbals
Electronic Drums EFNOTE PRO
  • 5 Shells, 5 Cymbals
Electronic Drums EFNOTE PRO
  • 6 Shells, 6 Cymbals
Electronic Drums EFNOTE PRO
  • 6 Shells, 6 Cymbals
Electronic Drums EFNOTE PRO
  • 6 Shells, 7 Cymbals
Electronic Drums EFNOTE PRO
  • 7 Shells, 8 Cymbals

PRO 500 Series (Compact Configuration)

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

PRO 500 Series

Based on our 16” kick drum, this compact kit will offer practicality and portability. For small stages, church, cafe, bar, party, wedding and home-studio.

The PRO 500 series supports all EFNOTE drum/cymbal pads for expanding.

Electronic Drums EFNOTE PRO
  • 4 Shells, 3 Cymbals
Electronic Drums EFNOTE PRO
  • 5 Shells, 4 Cymbals
Electronic Drums EFNOTE PRO
  • 5 Shells, 5 Cymbals
Electronic Drums EFNOTE PRO
  • 5 Shells, 5 Cymbals
Electronic Drums EFNOTE PRO
  • 6 Shells, 6 Cymbals
Electronic Drums EFNOTE PRO
  • 6 Shells, 6 Cymbals
Electronic Drums EFNOTE PRO
  • 6 Shells, 7 Cymbals
Electronic Drums EFNOTE PRO
  • 7 Shells, 8 Cymbals

Basic Items

Electronic Drums EFNOTE PRO

EFNOTE PRO 700

EFDPRO7-STDSET

Electronic Drums EFNOTE PRO

EFNOTE PRO 500

EFDPRO5-STDSET

Electronic Drums EFNOTE PRO

EFNOTE PRO Sound Module

EFD-PRO

  • For new customers who want to build the kit from the ground up
  • For EFNOTE 3/3X/5/5X/7/7X users who want to upgrade the sound module
  • EFNOTE 3/3X/5/5X/7/7X sound module can be used as a secondary module with Line In of EFD-PRO.

Optional Hardware Sets

Hardware Set for PRO 700

EFD7-BOX3

Unless sold separately, Hardware Set is usually included in the EFNOTE PRO 700 set.
Please contact your dealer for details.

Hardware Set for PRO 500

EFD5-BOX3

Unless sold separately, Hardware Set is usually included in the EFNOTE PRO 500 set.
Please contact your dealer for details.

Optional Expansion Packs

Expansion Pack 1 for PRO 700

EFD7-EXPCK1-WS

Expansion Pack 1 for PRO 500

EFD5-EXPCK1-WS

Expansion Pack 2

EFD7/5-EXPCK2-WS

Expansion Pack 3

EFD7/5-EXPCK3-WS

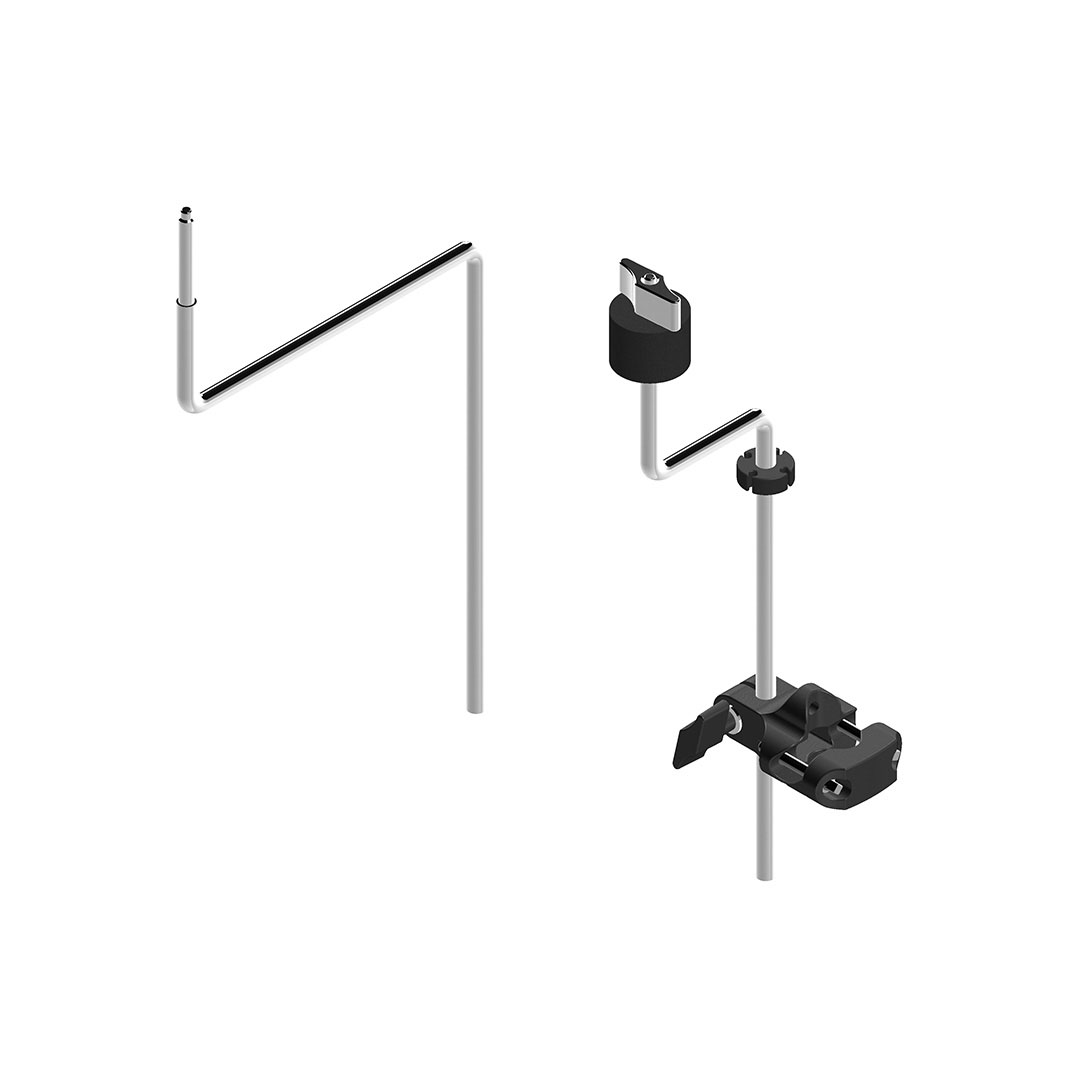

Optional Components

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO

Building Up with Optional Components

The optional component pads allow you to expand and customize your kit up to the number of trigger inputs.

EFNOTE PRO sound module supports all EFNOTE drum/cymbal pads.

Product image for illustration purposes only, actual product may vary.

In some countries, specifications and configuration shown may vary.

Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone, computer, are not included.

Other models or customized setups are shown for some images.

Some of technologies and designs are patented or under patent pending.

Company names, brand names, etc. appear in photos are registered trademarks or trademarks of the respective companies.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc..

Electronic Drums EFNOTE PRO
New

UT (User Tone)

UT, a new feature in EFNOTE PRO V2.0 that allows you to create custom drum sounds for stage performance and music production.

Simply drag and drop your audio files into EFNOTE Desktop Tools app, they will be assigned to create a dynamics-sensitive tone. With a single click, the UT will be transferred to the module, ready to be assigned to a drum pad and played.

UTs can also be used as Overlay Tones, allowing you to layer them with the preset tones. This expands your creative options with EFNOTE's high-quality sounds.

User Tones can be used for drum pads (Kick/Snare/Toms) only.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO
New

IX (Inst Expansion)

IX, a collection of add-on drum instruments available online, has been significantly enhanced with the new EFNOTE Desktop Tools app, making it easier than ever to browse and install IX collections.

We are committed to continuously providing a diverse range of authentic and usable sounds—from timeless classics to the latest trends—that support professional musicians in various scenarios. Every instrument sound is recorded and mastered by EFNOTE to ensure the highest quality.

Discover the perfect instrument packages for your live performances and studio productions.

Instrument Expansion can be used for drum pads (Kick/Snare/Toms) only.

Electronic Drums EFNOTE PRO
Electronic Drums EFNOTE PRO
New

EFNOTE Desktop Tools app

To further unlock the flexibility of the acclaimed EFNOTE PRO drum system, EFNOTE Desktop Tools app was newly developed.

Running on both Mac and Windows, this app allows you to simply and intuitively manage your User Tones and Instrument Expansions on the EFNOTE PRO sound module (Version 2.0 or later) via USB.

Electronic Drums EFNOTE PRO

How to Start the UT and IX

1. Update Firmware

Download the latest firmware from this page.

2. Get the EFNOTE Desktop Tools app

Download the app from the stores below. (Software License Agreement)

3. Follow the Quick Start

You can access this help page by tapping the [?] button in the app.


NOTICE

With the release of firmware version 2.0, providing and installing IXs have been moved to using the EFNOTE Desktop Tools app.
Due to this, information on this page is only for users with older versions and is no longer maintained.

The new EFNOTE Desktop Tools app allows you not only to get and install new IXs much more easily than before, but also to use the newly added User Tone (UT) feature.
For your best experiences, update your PRO module to v2.0 and use the EFNOTE Desktop tools app right now.


Before downloading the following items, please carefully read the Software License Agreement.

Software License Agreement

Tutorial

Specifications

EFNOTE PRO Sound Module: EFD-PRO

User Interface
  • Full Color, Capacitive Touchscreen Display
  • 2x Multi-Function Knob (with Ring LED)
  • 1x Value Knob (with Ring LED)
Trigger Interface
  • 3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat
  • 2-Zone (7x): Tom 1/2/3/4/5, Crash 5(Splash), Crash 6(China)
  • 1-Zone (1x): Kick
  • ELISE™ 2.0 Trigger Sensing Chip
Audio / MIDI Interface
  • Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12)
  • Line Out: 2x 1/4” TS Phone (-10dBV, Unbalanced, +14dBV Max)
  • Phones Out: 1x 1/4” Stereo (320 + 320 mW @32Ω), 1x 1/8” Stereo (320 + 320 mW @32Ω)
  • Monitor In: 2x XLR(F) + 1/4” TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw
  • Line In: 2x 1/4” TS Phone (-10dBV, Unbalanced, +10dBV Max)

0dBu = 0.775Vrms, 0dBV = 1.0Vrms

  • USB: B Type USB 2.0 Hi-Speed
    Audio: 12ch Out (48kHz/24bit) / 2ch In (48kHz/16bit), Mac/Windows ASIO
    MIDI: In/Out
  • Bluetooth: Audio Input (A2DP)
  • Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT)
  • Transmission Frequency: 2402-2480 MHz, Maximum Transmit Power: 2.5 mW EIRP

  • MIDI Out: 5-pin DIN
Other Interfaces
  • Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only)
  • USB (Flash Drive): A Type USB 2.0 (supports flash drive only)
  • USB (For Service): B Type (for service purpose only)
Drum Kits / Instruments
  • Preset Drum Kits: 23 (editable)
  • User Drum Kits: 100
  • Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements
  • Tru-Aco™ Sound Technology
Edit Parameters
  • Level, Pan, Tuning, Muffling (for each pad)
  • 2-Band EQ (for each pad)
  • Overlay Tone (for each zone)
  • Global Pan (for all drum kits in common)
  • Changable Kit Name Color and Background Kit Image (for each user drum kit)
Click
  • 4x Click Setup Memory
  • Tempo (BPM): 40.0-240.0 (0.1 Step)
  • Beat (Time Signature): 1/4-13/4, 2/8-13/8
Set-List
  • 15x Set-List (20 slots for each list)
  • Array-style 20 slot buttons
  • Slot Tag Color and Slot Notes feature
  • Tempo and Beat Settings for each slot
  • Each set-list can be saved to a USB flash drive
Recorder
  • Tracks: 15
  • Resolution: 480 TPQN
Buses
  • 16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R)
  • Bus HPF and EQ (Bus 1-12), Bus Compressor (Bus 1-6)
  • 12x Bus Outputs (12x XLR Analog and 12ch USB Audio)
  • Bus Mixer
  • Main HPF and EQ (Main L/R)
Other Features
  • Inst Expansion
  • Foot Light
  • Ground Lift Switches (for Bus Out and Monitor In)
  • Full Metal Cabinet
  • Guard Handles
Dimensions / Weight
  • Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g
  • Base Unit: 206 (W) x 210 (D) x 238 (H) mm / 3,250 g

Excluding protrusions

Power Supply / Current Draw
  • AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A
Accessories
  • 1x Link Cable 2.0m (EFD-DSUB9-2)
  • 1x AC Adapter (FJ-SW1202000N-EFNOTE)
  • 10x Trigger Cable 3.0m (EFD-TRS-LL3)
  • 1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3)
  • Module Mount Set
  • Smartphone Tray Set
  • Tuning Key
  • Cable Ties
  • Cable Labels
  • Quickstart Guide

EFNOTE PRO 703X

EFNOTE PRO 703X
(EFDPRO7X-STDSET)
Sound Module EFD-PRO
Kick EFD-K2015
  • Size: 20 x 15"
  • Finish: Black Oak-ish
  • Zone: Head
  • Sensor: Multi
  • Head: Double-layered mesh with beater patch
  • Connector: Head (TRS Phones)
  • Features: Wood hoop
Snare EFD-S1455
  • Size: 14 x 5.5"
  • Finish: Black Oak-ish
  • Zone: Head / Rim / Side-Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim, Side-Rim (2x TRS Phones)
  • Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1070
  • Size: 10 x 7"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom 1 EFD-T1313
  • Size: 13 x 13"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom 2 EFD-T1515
  • Size: 15 x 15"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
  • Size: 14" (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
  • General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

Crash 1 EFD-C16
  • Size: 16"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Crash 2 EFD-C18
  • Size: 18"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Crash 3 EFD-C18-D
  • Size: 18"
  • Color: Dark gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Ride EFD-C20
  • Size: 20"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Hammered texture surface with fine engravings
Effect EFD-C17FX
  • Size: 17" with 8 holes
  • Color: Dark gray
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: STAK™ cymbal mount, Weight simulation, Hammered texture surface with fine engravings
Splash EFD-C08
  • Size: 8"
  • Color: Warm gray
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Optional Hardware Set
(EFDPRO7X-BOX4)
Snare Drum Stand EFD-SS14
  • For 12" to 14" diameter snare drums
  • Geared basket tilter
  • Double braced legs
  • Tube diameter: φ22.2 mm (7/8")
  • Height adjustment range: 450 - 600 mm
Cymbal Stand
(5 pcs.)
EFD-CS30
  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ22.2 mm (7/8")
  • Boom length: 400 mm
  • Height adjustment range: 750 - 1,450 mm
Tom Mount EFD-TM5
  • Ball angle adjustment
  • Knurled carbon steel rod
  • L-rod diameter: φ10.0 mm (3/8")
  • Installable pipe diameter: φ19.1 mm (3/4") -- φ31.8 mm (5/4")

Snare drum stand, tom stand and cymbal stands are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.

New

EFNOTE PRO 500X

EFNOTE PRO 500X
(EFDPRO5X-STDSET)
Sound Module EFD-PRO
Kick EFD-K1612
  • Size: 16 x 12"
  • Finish: Black Oak-ish
  • Zone: Head
  • Sensor: Multi
  • Head: Double-layered mesh with beater patch
  • Connector: Head (TRS Phones)
  • Features: Wood hoop
Snare EFD-S1455
  • Size: 14 x 5.5"
  • Finish: Black Oak-ish
  • Zone: Head / Rim / Side-Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim, Side-Rim (2x TRS Phones)
  • Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1070
  • Size: 10 x 7"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom EFD-T1313
  • Size: 13 x 13"
  • Finish: Black Oak-ish
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
  • Size: 14" (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
  • General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

Crash EFD-C16
  • Size: 16"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Ride EFD-C20
  • Size: 20"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Hammered texture surface with fine engravings
Effect EFD-C17FX
  • Size: 17" with 8 holes
  • Color: Dark gray
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: STAK™ cymbal mount, Weight simulation, Hammered texture surface with fine engravings
China EFD-C18CH
  • Size: 18"
  • Color: Dark gray
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: STAK™ cymbal mount, Weight simulation, Hammered texture surface with fine engravings
Splash EFD-C08
  • Size: 8"
  • Color: Warm gray
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Optional Hardware Set
(EFDPRO5X-BOX3)
Snare Drum Stand EFD-SS14
  • For 12" to 14" diameter snare drums
  • Geared basket tilter
  • Double braced legs
  • Tube diameter: φ22.2 mm (7/8")
  • Height adjustment range: 450 - 600 mm
Cymbal Stand
(4 pcs.)
EFD-CS5
  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ19.1 mm (3/4")
  • Boom length: 400 mm
  • Height adjustment range: 800 - 1,500 mm

Snare drum stand, tom stand and cymbal stands are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.

EFNOTE PRO 700

EFNOTE PRO 700
(EFDPRO7-STDSET)
Sound Module EFD-PRO
Kick EFD-K2015
  • Size: 20 x 15"
  • Finish: White Sparkle
  • Zone: Head
  • Sensor: Multi
  • Head: Double-layered mesh with beater patch
  • Connector: Head (TRS Phones)
  • Features: Wood hoop
Snare EFD-S1455
  • Size: 14 x 5.5"
  • Finish: White Sparkle
  • Zone: Head / Rim / Side-Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim, Side-Rim (2x TRS Phones)
  • Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1180
  • Size: 11 x 8"
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom EFD-T1515
  • Size: 15 x 15"
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
  • Size: 14" (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
  • General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

Crash EFD-C16
  • Size: 16"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Ride EFD-C20
  • Size: 20"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Hammered texture surface with fine engravings

Optional Hardware Set
(EFD7-BOX3)
Snare Drum Stand EFD-SS5
  • For 12" to 14" diameter snare drums
  • Geared basket tilter
  • Double braced legs
  • Tube diameter: φ19.1 mm (3/4")
  • Height adjustment range: 500 - 650 mm
Cymbal Stand
(2 pcs.)
EFD-CS5
  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ19.1 mm (3/4")
  • Boom length: 400 mm
  • Height adjustment range: 800 - 1,500 mm
Tom Mount EFD-TM5
  • Ball angle adjustment
  • Knurled carbon steel rod
  • L-rod diameter: φ10.0 mm (3/8")
  • Installable pipe diameter: φ19.1 mm (3/4") -- φ31.8 mm (5/4")

Snare drum stand, tom stand and cymbal stands are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.

EFNOTE PRO 500

EFNOTE PRO 500
(EFDPRO5-STDSET)
Sound Module EFD-PRO
Kick EFD-K1612
  • Size: 16 x 12"
  • Finish: White Sparkle
  • Zone: Head
  • Sensor: Multi
  • Head: Double-layered mesh with beater patch
  • Connector: Head (TRS Phones)
  • Features:Bass drum riser, Wood hoop
Snare EFD-S1250
  • Size: 12 x 5"
  • Finish: White Sparkle
  • Zone: Head / Rim / Side-Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim, Side-Rim (2x TRS Phones)
  • Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1070
  • Size: 10 x 7"
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom EFD-T1212
  • Size: 12 x 12"
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
  • Size: 14" (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
  • General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

Crash EFD-C16
  • Size: 16"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Ride EFD-C18
  • Size: 18"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Optional Hardware Set
(EFD5-BOX3)
Snare Drum Stand EFD-SS5
  • For 12" to 14" diameter snare drums
  • Geared basket tilter
  • Double braced legs
  • Tube diameter: φ19.1 mm (3/4")
  • Height adjustment range: 500 - 650 mm
Cymbal Stand
(2 pcs.)
EFD-CS5
  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ19.1 mm (3/4")
  • Boom length: 400 mm
  • Height adjustment range: 800 - 1,500 mm

Snare drum stand, tom stand and cymbal stands are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.


Specification and design are subject to change without prior notice.

In some countries, the specifications and configuration shown may vary.

Product images are for illustration purposes only, actual products may vary.

Some of technologies and designs are under patent pending.

Windows is a trademark or registered trademark of Microsoft Corporation.

Mac and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.

ASIO is a trademark and software of Steinberg Media Technologies GmbH.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc..

USB Compatibility

Mac

Apple chip:

  • macOS Sequoia (15.2 or newer), Sonoma (14.5 or newer), Ventura (13.3.1 or newer), Monterey (12.x), Big Sur (11.4 or newer)

Intel chip:

  • macOS Ventura (13.3.1 or newer)
  • macOS Monterey (12.x), Big Sur (11.2.3 or newer)
  • macOS 15 (Sequoia), 14 (Sonoma), 10.15 (Catalina), 10.14 (Mojave), and 10.13 (High Sierra) are no longer tested but are expected to work.

Windows
  • Windows 11, Windows 10

To see the firmware version, go to Menu > Settings > Info > Firmware Version.

Latest firmware can be downloaded below.

Operation is not guaranteed for all environments. Some computers may not be fully compatible.

Downloads

Before downloading the following items, please carefully read the Software License Agreement.

Software License Agreement

Manuals (PDF)

Quickstart Guide
Reference Guide
Sound List
Audio Diagram
Dimensions
Drum/Cymbal Pads
Additional Notices

Firmware / Apps / Drivers

Firmware

To learn how to update your sound module, refer to the video below.

The updater is furnished to you for use at your own risk. If your device got any damage due to updating, you will be charged for the repair.


Version 2.01

- Added User Tone (UT) feature: Now you can create custom drum tones with your favorite audio files and add them to your sound module.

- Added Customizing Inst Name feature.

- Supported the newly released EFNOTE Desktop Tools app (Mac/Windows).

- Improved management of IXs: Now you can easily install IXs directly from our IX server with the Desktop Tools app.

- Fixed minor bugs.

(See the Supplemental Reference Guide for Ver 2.0 PDF for the details.)


Version 1.21

- Supported new pad models. Now all the EFNOTE pads can be supported.

- Improved ELISE processor. ELISE Ver F2.06 -> F2.18

- Changed the time of the Auto Power Saving setting: from 30 min to 15 min, due to the ecodesign requirements (EU) update.

- Fixed minor bugs.


Version 1.10

- Added "Swap Pad" function on the Kit Edit > Pad screen.

- Added the following knob functions on the Settings > Knobs screen.

  - Go to Bus Effects (push)

  - Go to Bus EQ (push)

  - Go to Bus Comp (push)

  - Change Pad/Bus Ch (turn)

- Added the OFF state of the Bluetooth and USB audio input routings on the Audio In & Main L/R > Audio Inputs screen.

- Improved the file name entry screen, to show the file name previously used when saving or loading a file. (excluding for drum kit and setlist screens)

- Supported the EFNOTE Tools app v1.1.

- With the "Auto-Approve", the authorization of EFNOTE Tools connection can be skipped with the same app ID device next time.

- The communication indicator lits when the EFNOTE Tools app is connected or communicating, on the top left of the screen.

- Added the following functions on the Settings > Bluetooth screen:

  - Added "Disable MIDI-In Messages", which ignores any incoming MIDI messages from Bluetooth to avoid producing unwanted sounds remotely.

  - Added "Reject Unknown App IDs". This rejects connection request from EFNOTE Tools apps that has unknown App IDs.

  - Added "Clear App IDs", which clears all the App IDs for the Auto-Approve.

- Fixed minor bugs.

(See the Supplemental Reference Guide for Ver 1.1 PDF for the details.)

EFNOTE Desktop Tools app
EFNOTE Tools mobile app
ASIO Driver

Version 1.1

Trigger Settings File

To apply the trigger settings file, use the EFNOTE Tools app, or a USB flash drive.

[EFNOTE Tools app] Import it in the UPLOAD TRIGGER screen, and upload it to your sound module.

[USB flash drive] Copy it to EFNOTE > EFD-PRO > Trigger folder, and load it on the TRIGGER/Overview screen.

Consumable Parts

See the Consumable Parts page.

Tutorials

Ask Help in the Forum

EFNOTE Facebook Forum

Get Support by Your Local Distributor
